8 Inch HD 2480×1860 Flexible AMOLED Display Touch Panel 60Hz
$598.00
Sale price
$598.00
Regular price

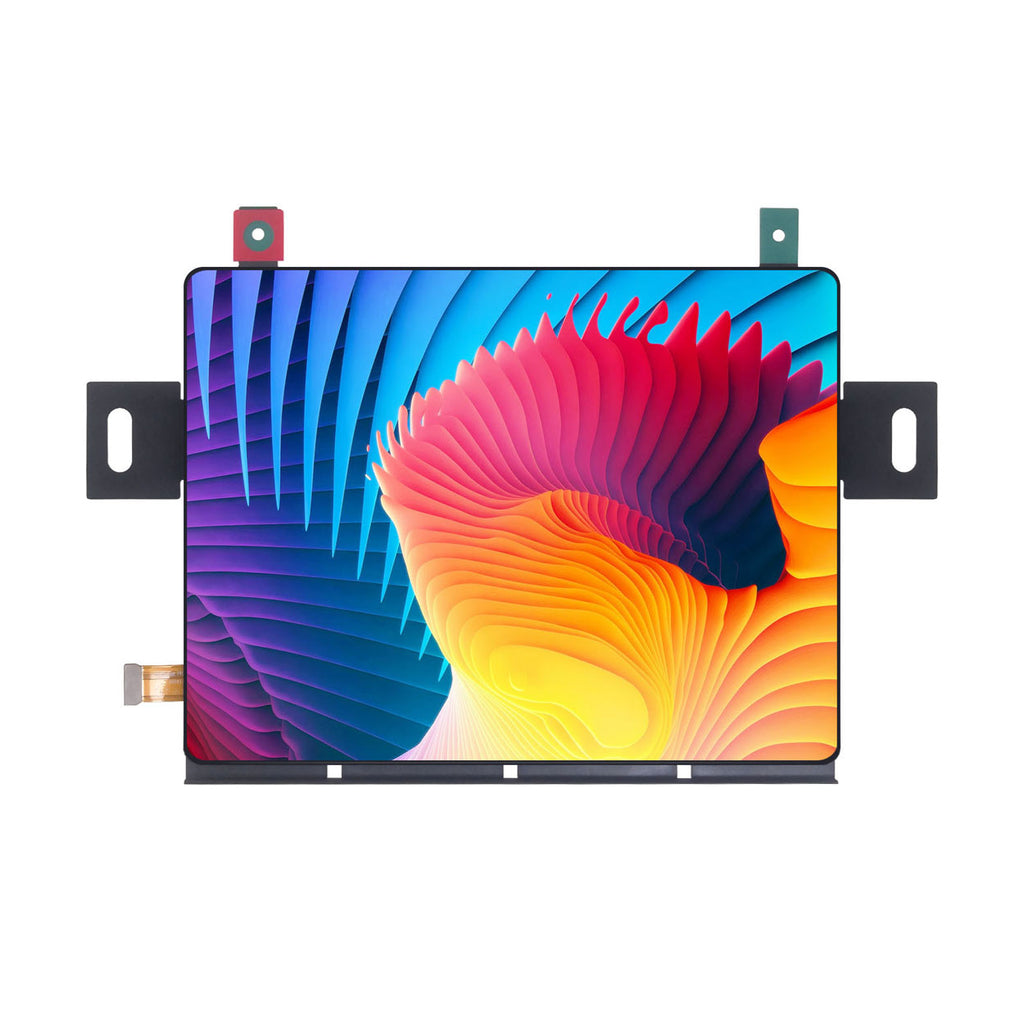

This 8-inch flexible AMOLED touch display features a 2480 × 1860 resolution and a 4:3 aspect ratio, providing a high-resolution display area for detailed graphics, text, and interactive interfaces. Supporting a 60Hz refresh rate, the module combines a MIPI display interface with an SPI touch interface. The package includes the 8-inch AMOLED display and an HDMI driver board. With an active area of 162.688 × 122.016 mm, it is suited to display projects requiring a flexible AMOLED panel and integrated touch functionality.
Features
- High-Resolution AMOLED Display: The 8-inch panel delivers a 2480 × 1860 resolution in a 4:3 format for detailed visual content.
- Flexible Panel Design: A flexible AMOLED structure provides design options for projects that require a non-rigid display panel.
- Integrated Touch Interfaces: Features a MIPI interface for display control and an SPI interface for touch communication.
- 60Hz Refresh Rate: Supports 60Hz operation for responsive visual updates in interactive display applications.
Mechanical Data
| Display Parameter | Specification |
| Size | 8 inch |
| Display Mode | AMOLED Display |
| Resolution | 2480×1860 |
| Aspect Ratio | 4:3 |
| Active Area | 162.688×122.016 mm |
| Outline Dimensions | 165.89×126.12 mm (before bending) |
| Driver IC | RM69380 |
| Touch IC | FST1BA80YA2 |
| IC Location | Driver IC: COP Touch IC: FPC |
| Touch Sensor | DOT |
| Interface | Display: MIPI Touch: SPI |
| Refresh Rate | 60Hz |

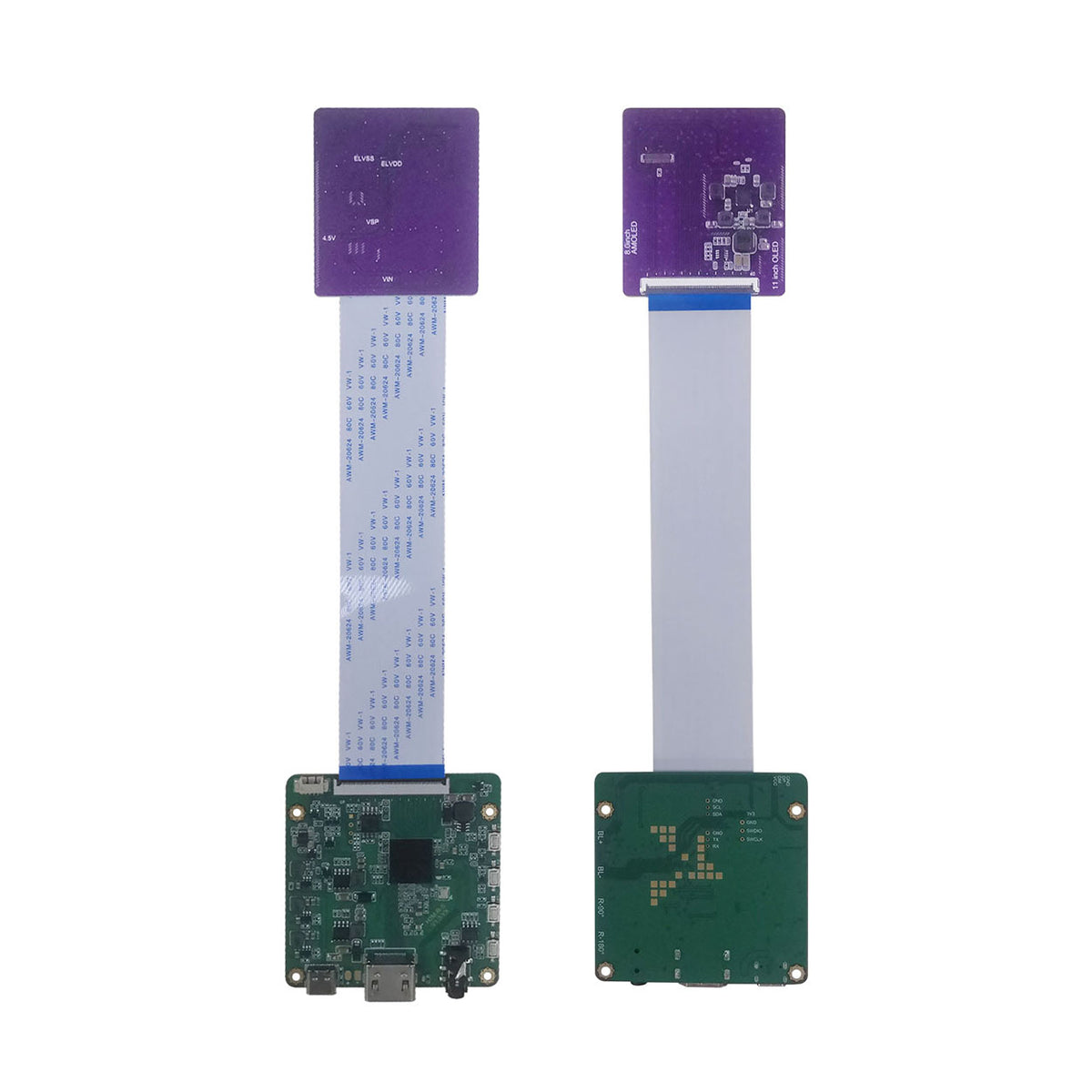

| Driver Board | HDMI Driver Board |
| Pin Count | 46 pins |

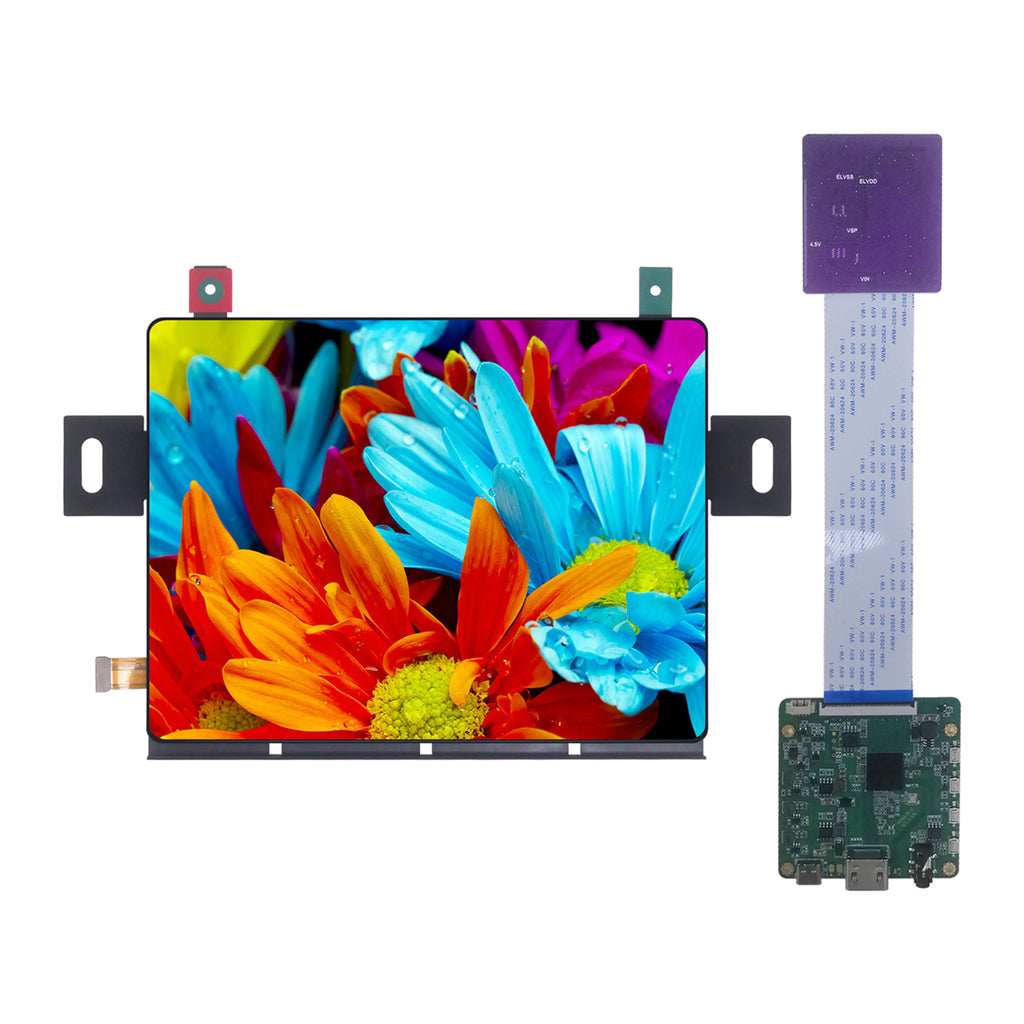

| Package Includes | 8-inch AMOLED display and HDMI driver board |
Mechanical Drawing
Module Interface
Module Overview
