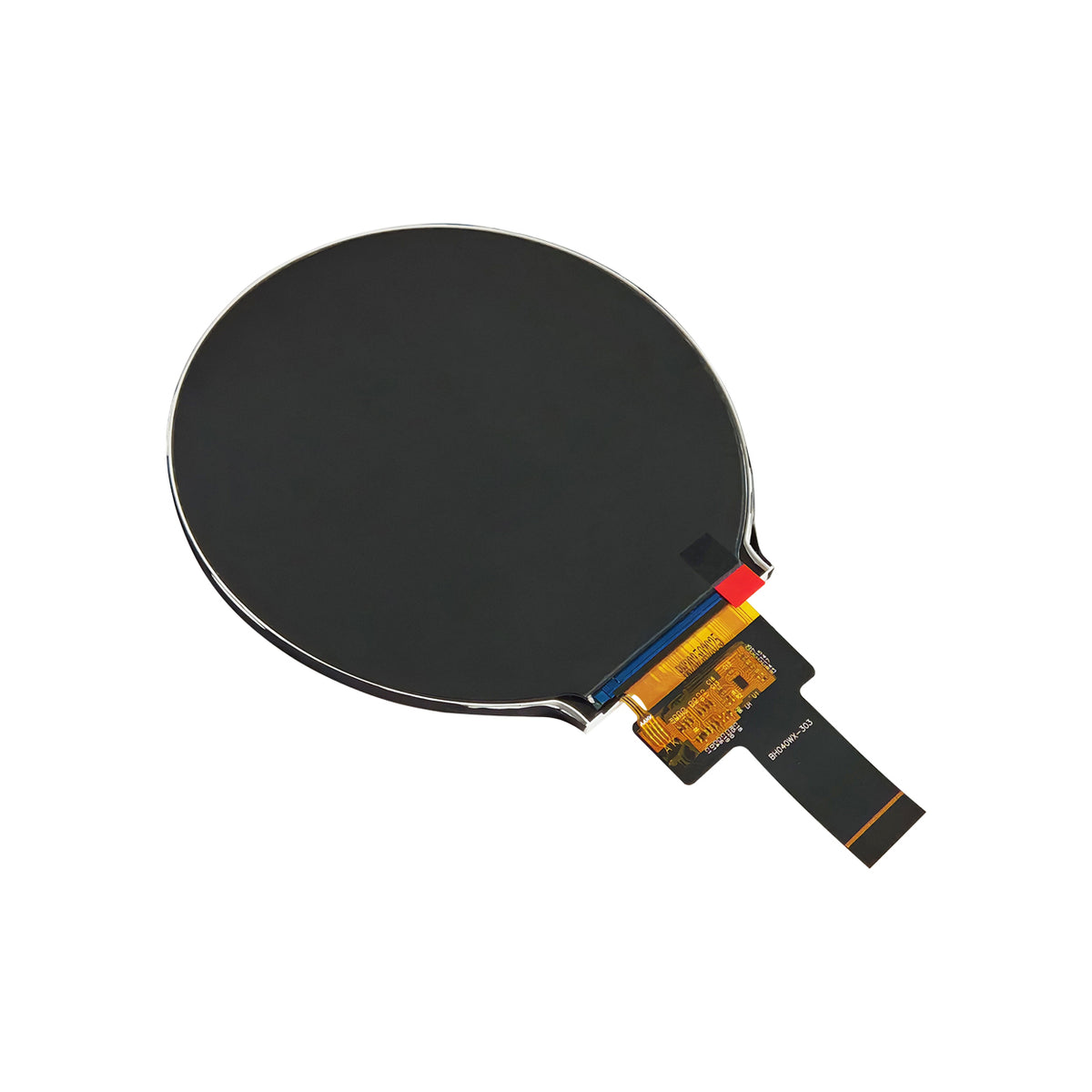

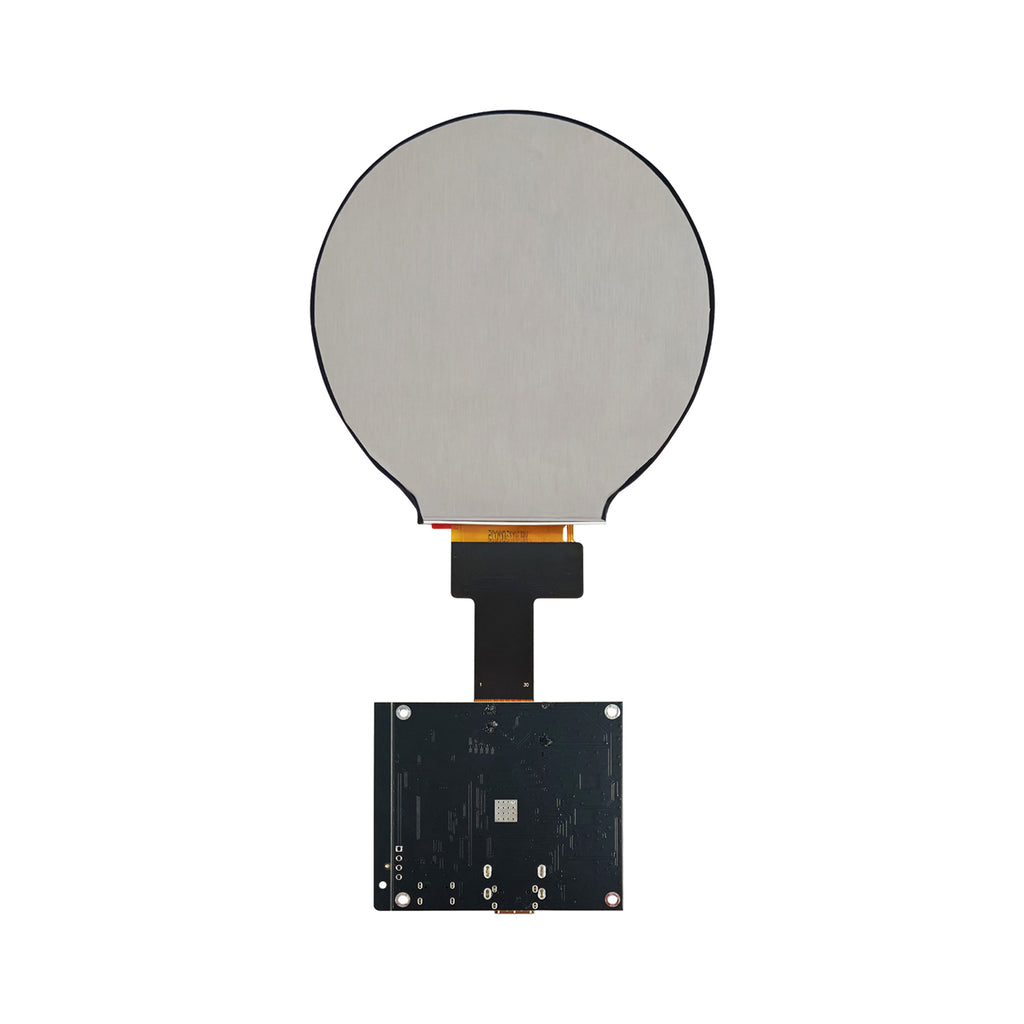

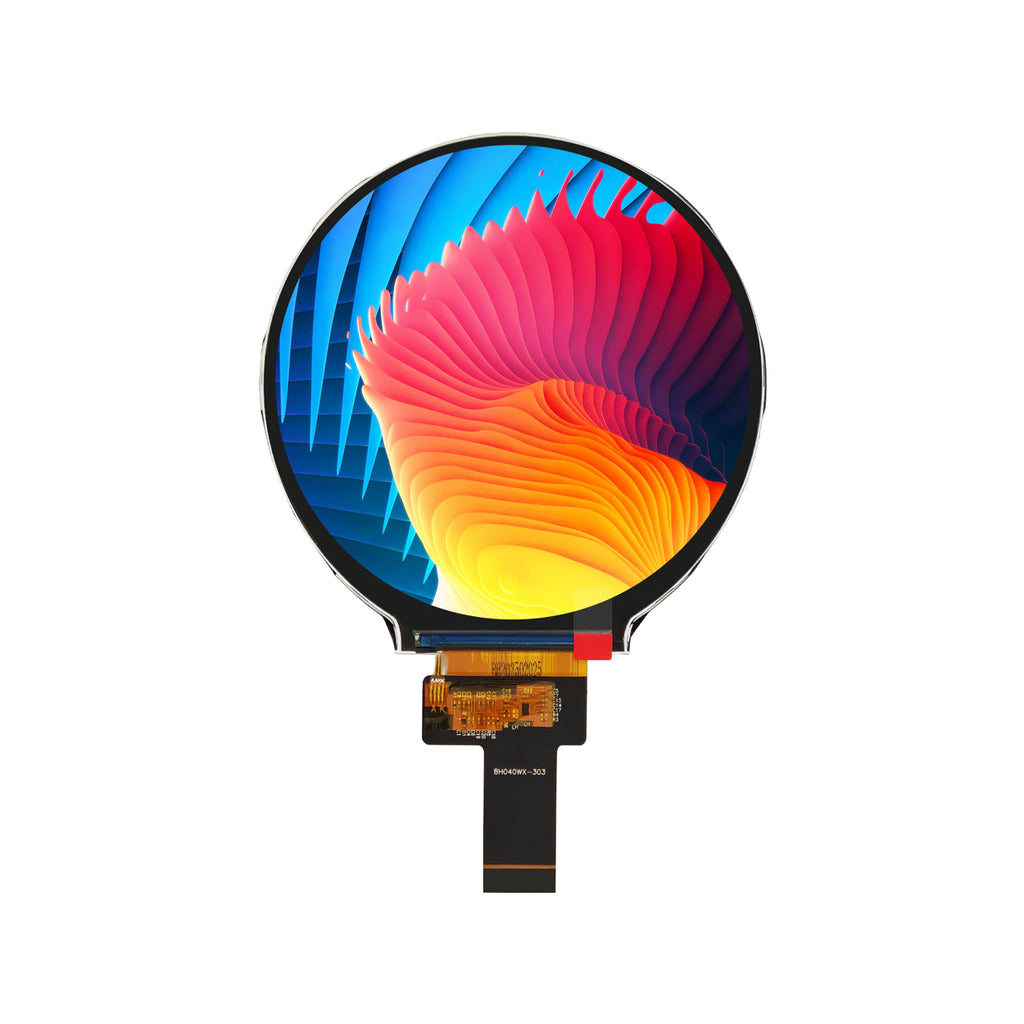

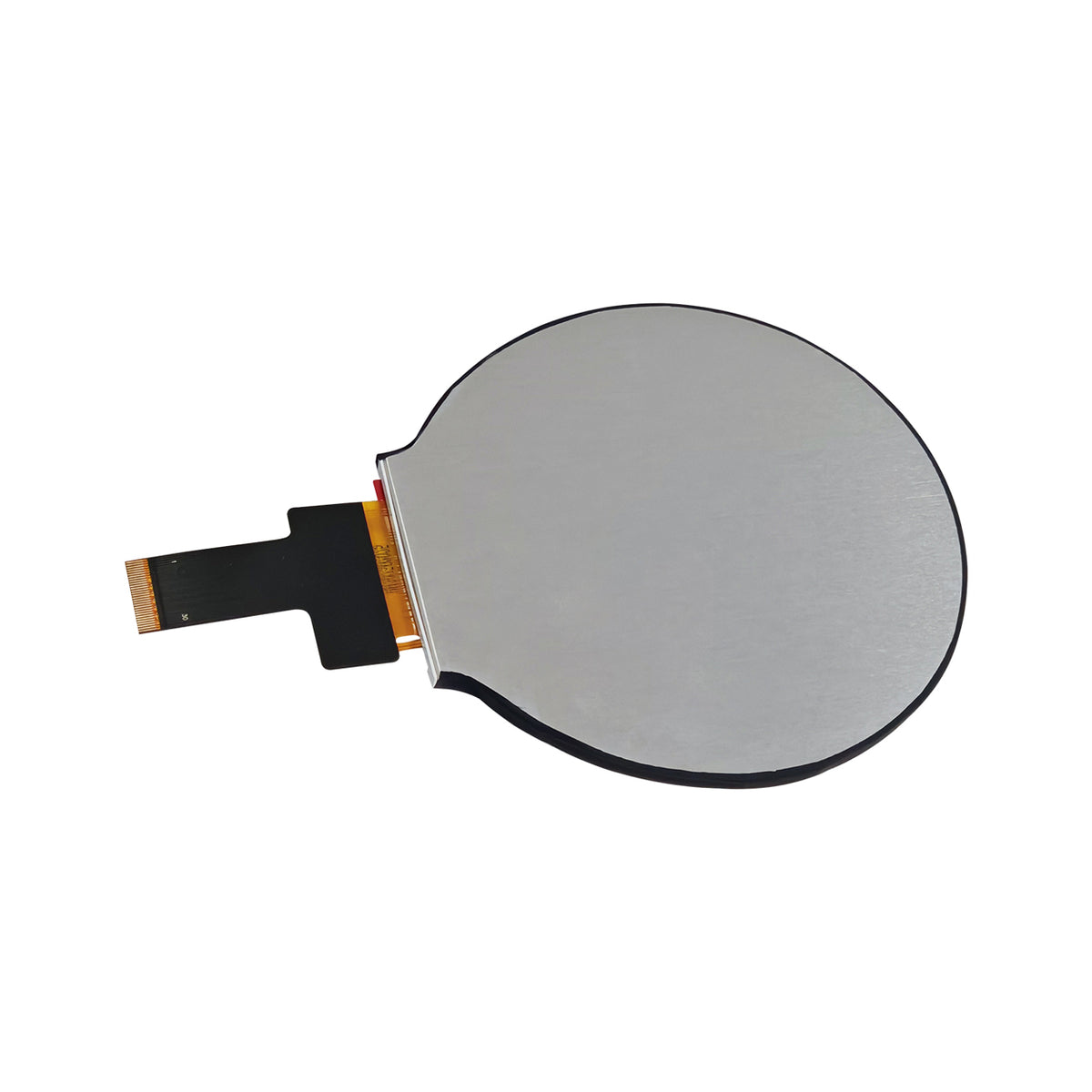

4 Inch 720×720 IPS Round TFT Display 1500nits MIPI With HDMI

Bring a clean, high-brightness interface to compact equipment with this 4-inch circular TFT LCD display module. Its 720×720 resolution, 1500 cd/m² luminance, and round active area are well suited to designs where a conventional rectangular screen simply does not fit. The module supports a 4-lane MIPI interface, while the HDMI control-board option provides a practical plug-and-play path for rapid evaluation and integration.

Features

• 4-inch circular display: A 720×720 round TFT LCD with a 101.52 × 101.52 mm active area for distinctive product interfaces and instrument panels.
• High-brightness viewing: 1500 cd/m² luminance helps keep content clear in bright indoor environments and other demanding display applications.

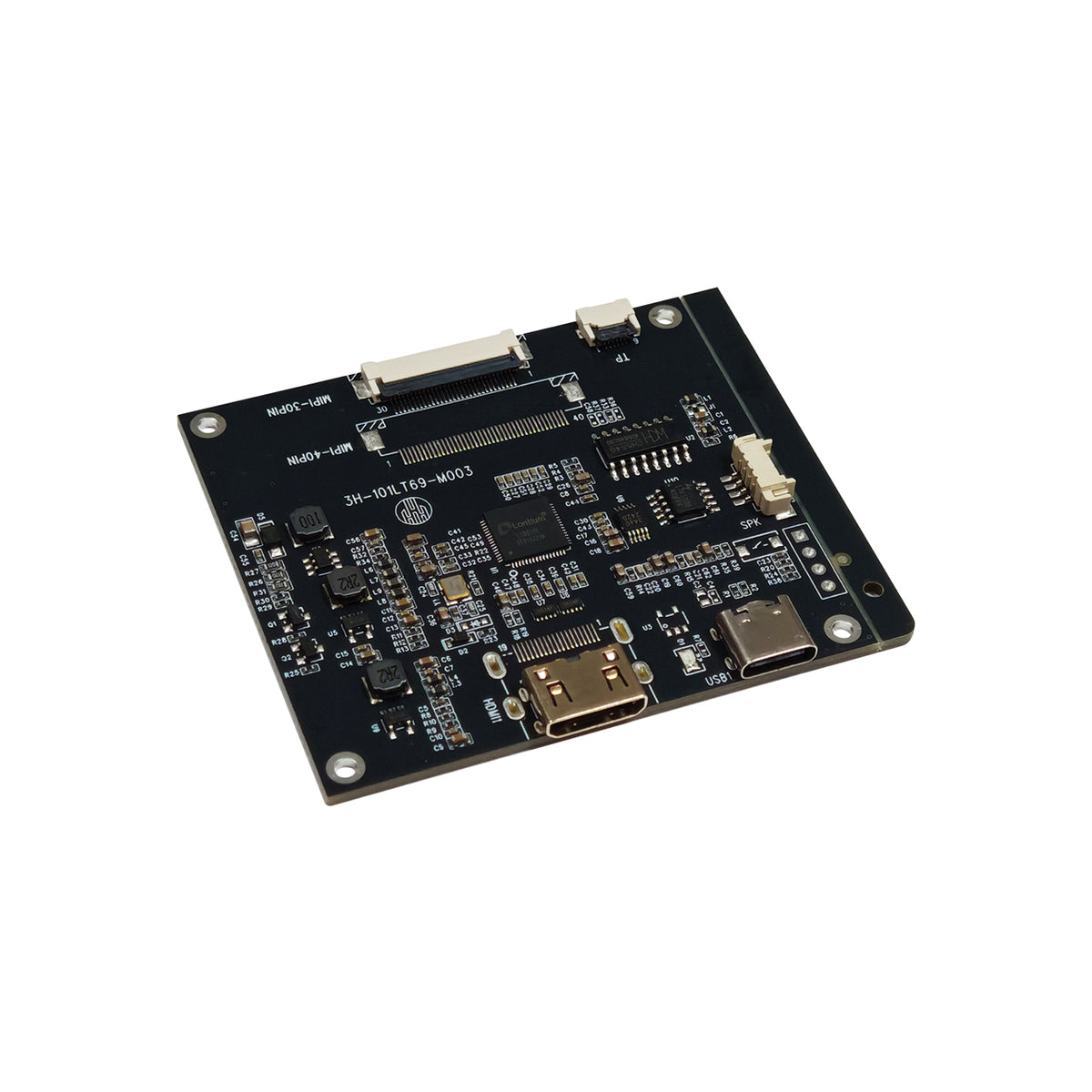

• Flexible system integration: 4-lane MIPI connectivity with a 30-pin interface supports embedded hardware designs, with an HDMI plug-and-play control-board option available.
• Wide operating range: Designed for operation from -30°C to +80°C, supporting equipment used across a broad range of working conditions.

Applications

• Industrial and embedded control panels
• Instrumentation and measurement equipment
• Vehicle and mobility displays
• Smart home appliances and custom HMI products

Mechanical Data

Mechanical Drawing

Module Interface

Module Overview
