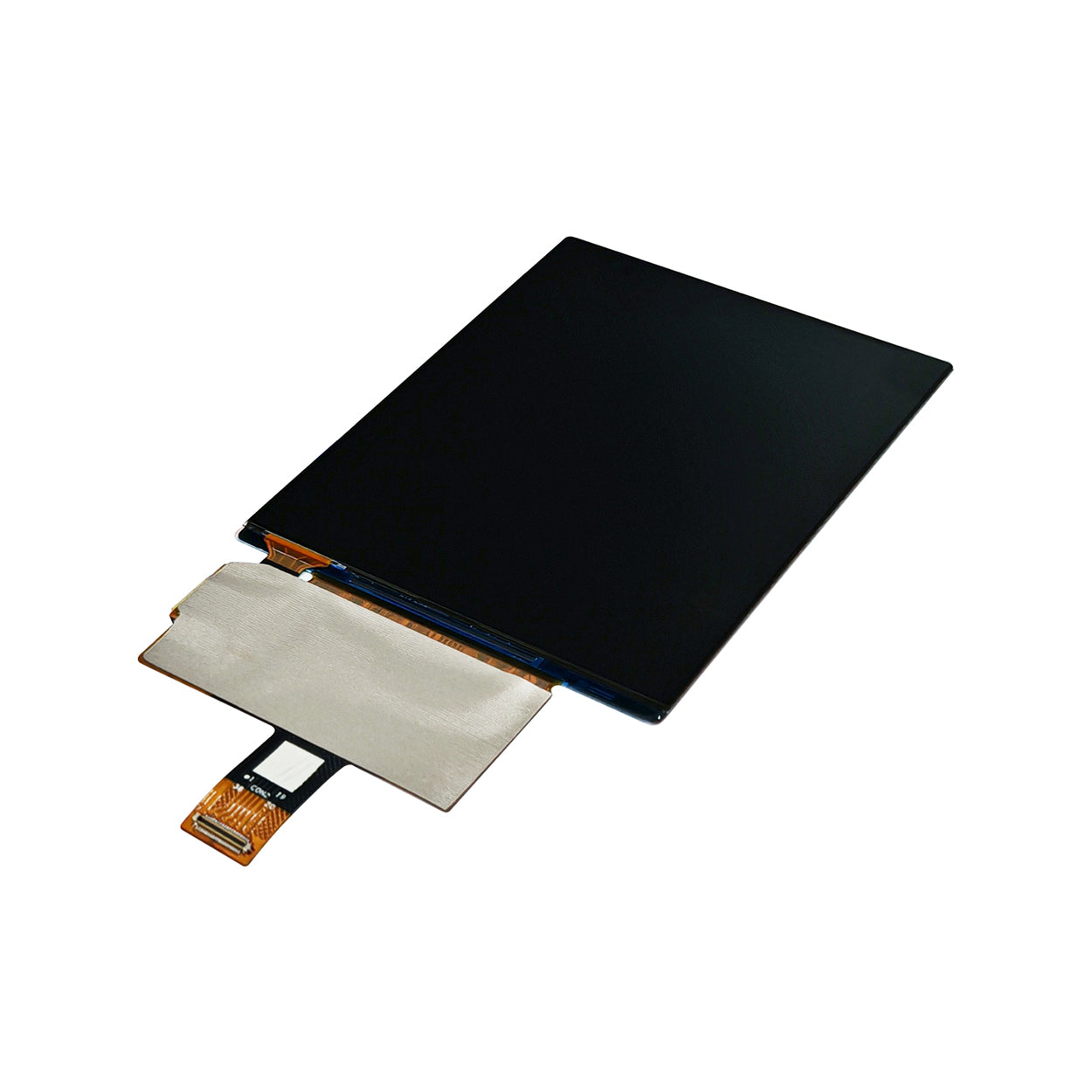

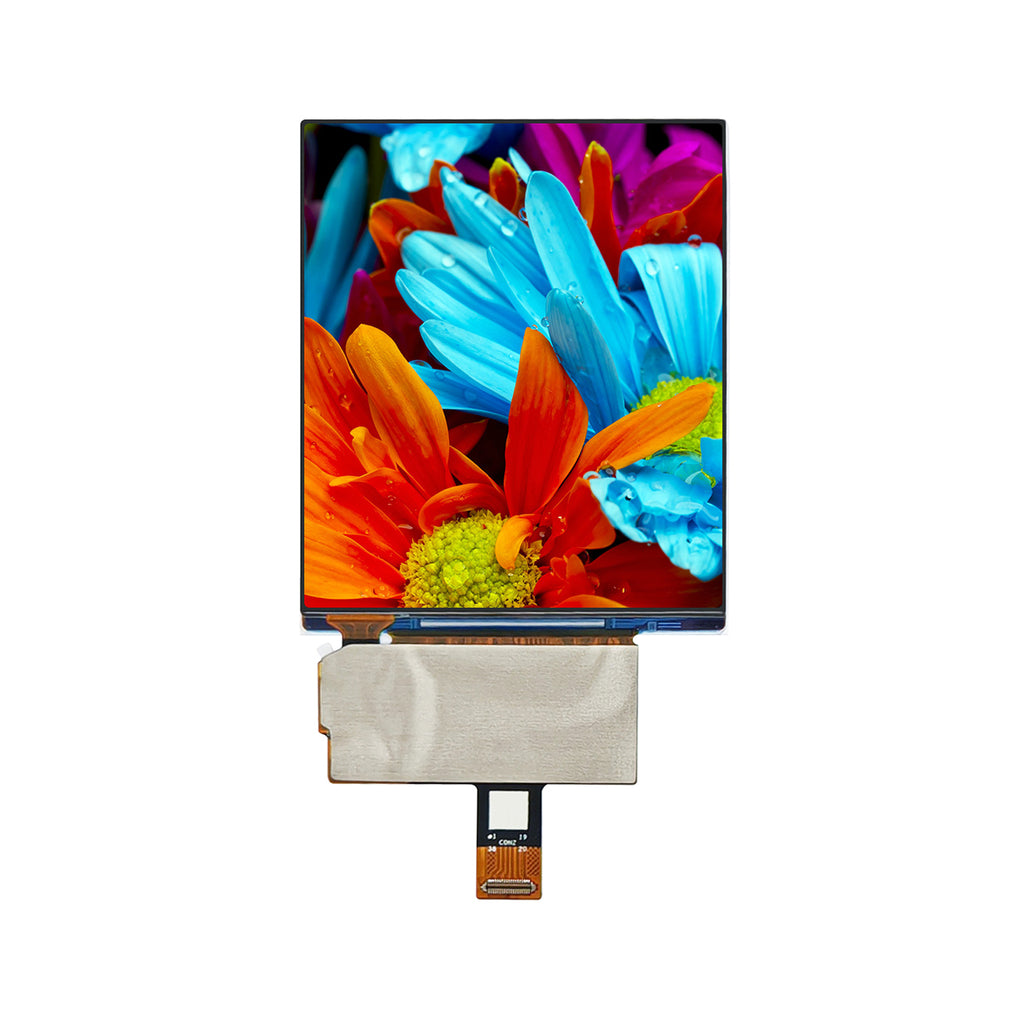

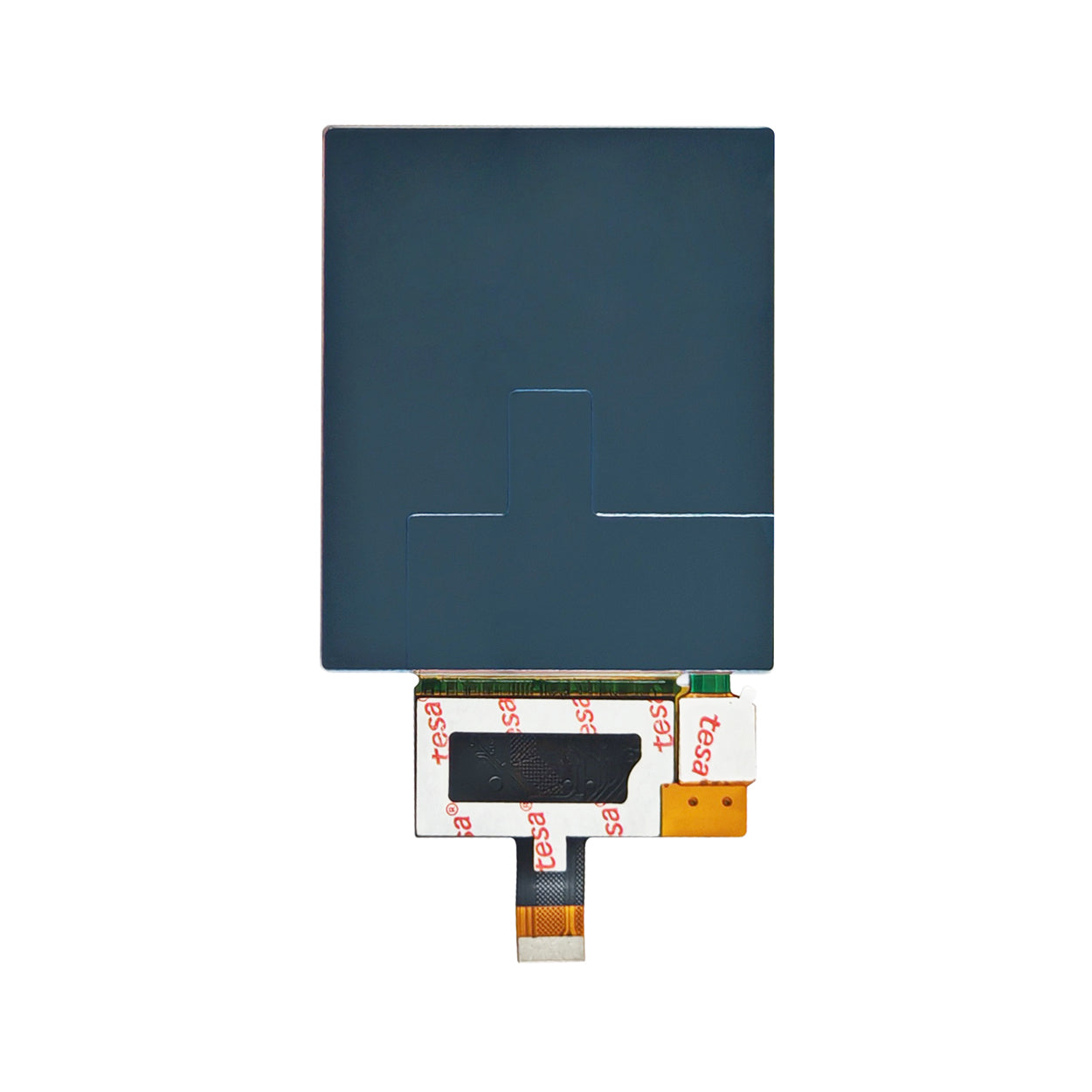

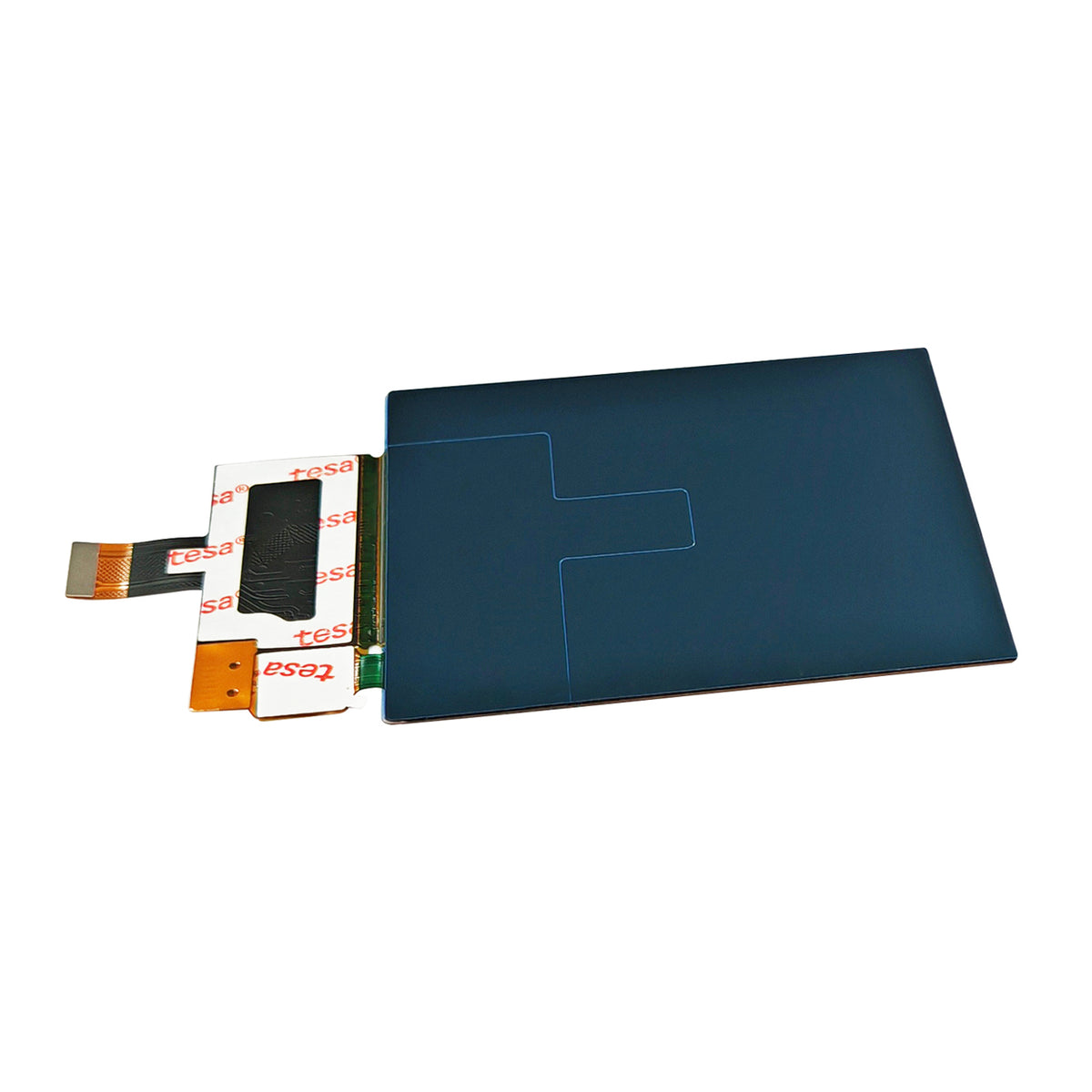

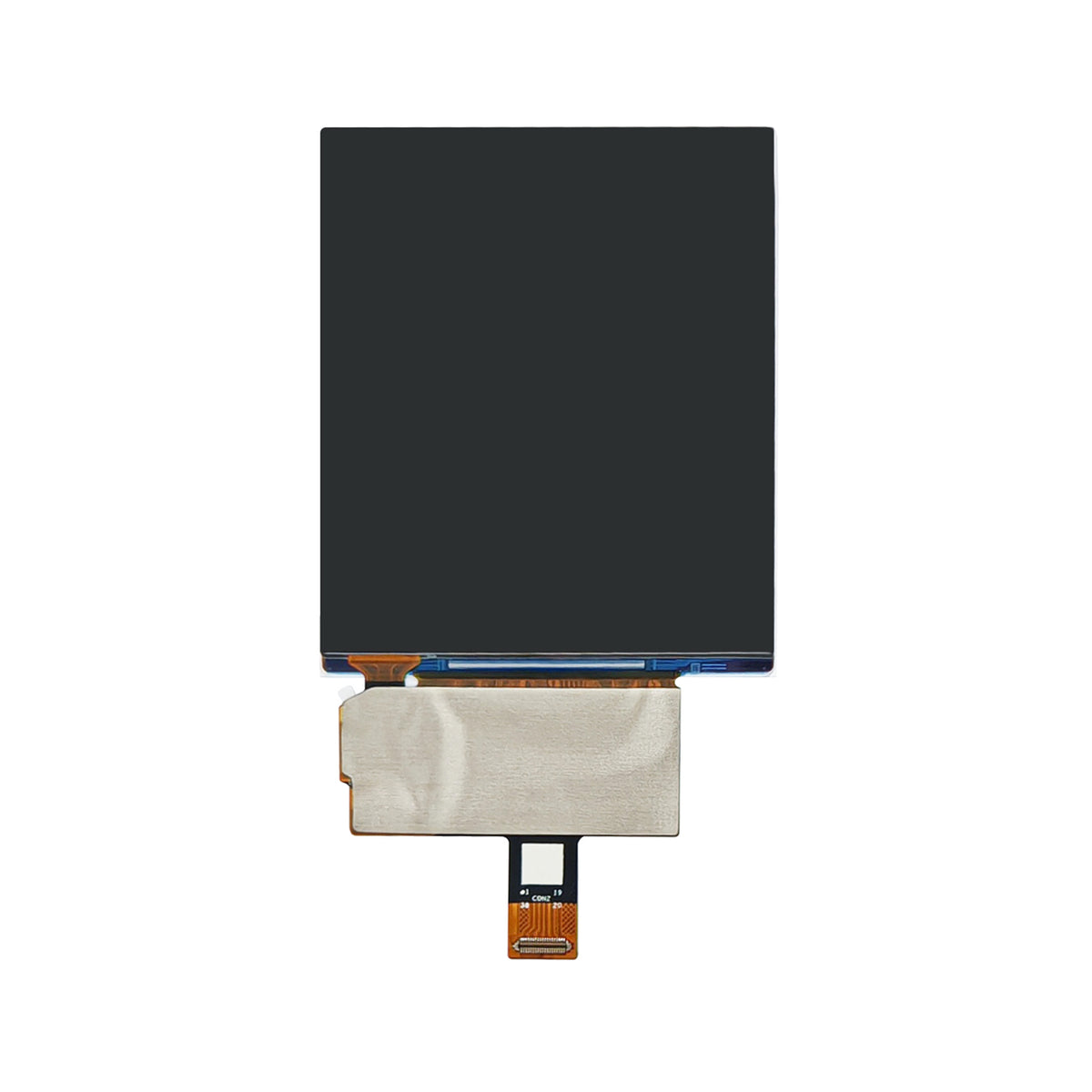

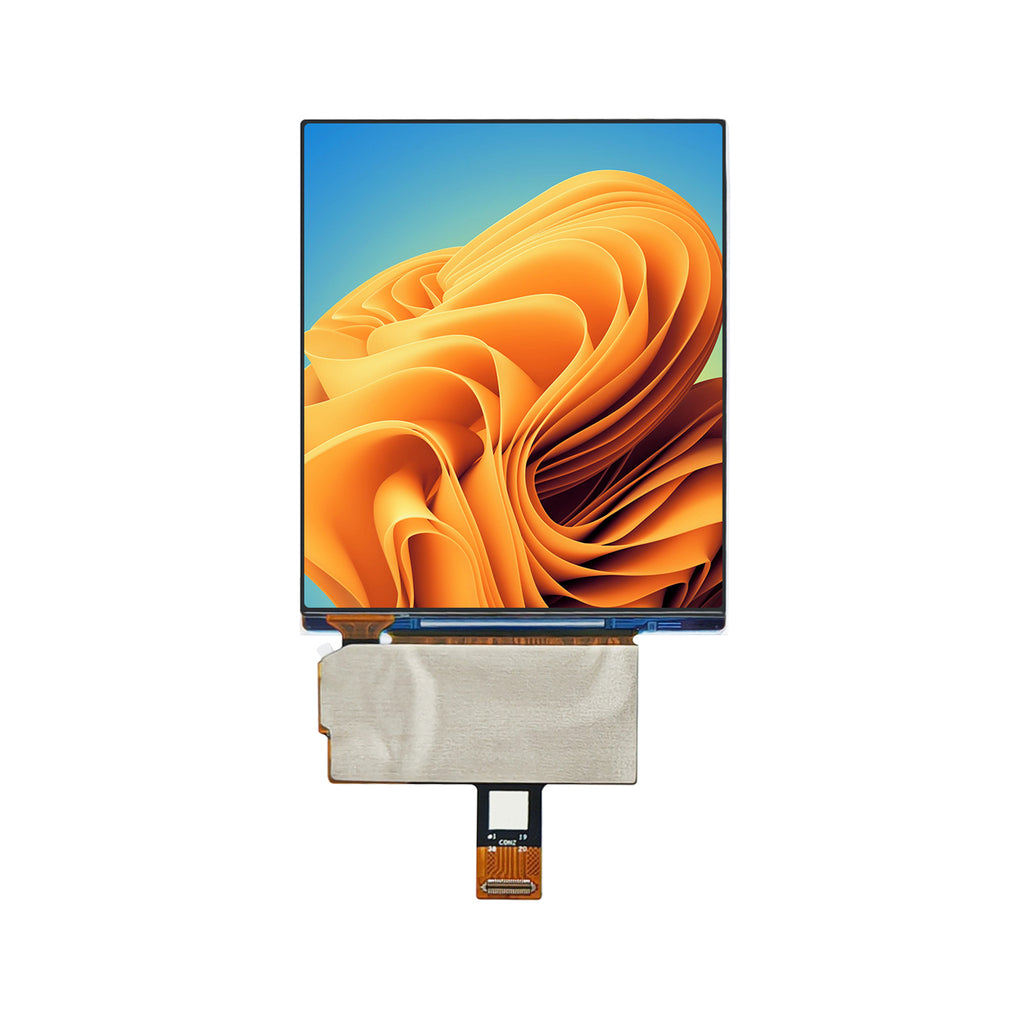

3.92 Inch 1080×1240 AMOLED Display MIPI On-Cell Touch Screen

The 3.92 inch AMOLED display is an LTPS active matrix TFT panel with 1080×1240 resolution, delivering 550 nits brightness and 16.7M colors with a V-Style4 Real RGB pixel configuration. Featuring a MIPI 4-lane interface, integrated On-Cell capacitive touch, and an ultra-thin 0.8 mm module profile, it is engineered for smartwatches, wearables, handheld devices, and compact consumer electronics demanding vivid visuals and precise touch response.

Features

• LTPS AMOLED with High Brightness — Low-temperature polysilicon technology delivers 550 cd/m² brightness and 16.7M colors with V-Style4 pixel arrangement for accurate, vibrant imagery
• Integrated On-Cell Touch Panel — Built-in capacitive touch layer eliminates extra components, reducing module thickness to just 0.8 mm for slim device designs
• MIPI 4-Lane Interface — High-speed MIPI 4-lane interface with 38-pin connector ensures stable signal transmission and simplified integration
• Wide Operating Temperature Range — Reliable from -20°C to 80°C with storage rated to -40°C, suitable for wearables and outdoor-facing consumer devices

Applications

• Smartwatches & wearables
• Handheld devices
• Compact consumer electronics
• Industrial HMI panels

Mechanical Data

Mechanical Drawing

Module Interface

Module Overview
