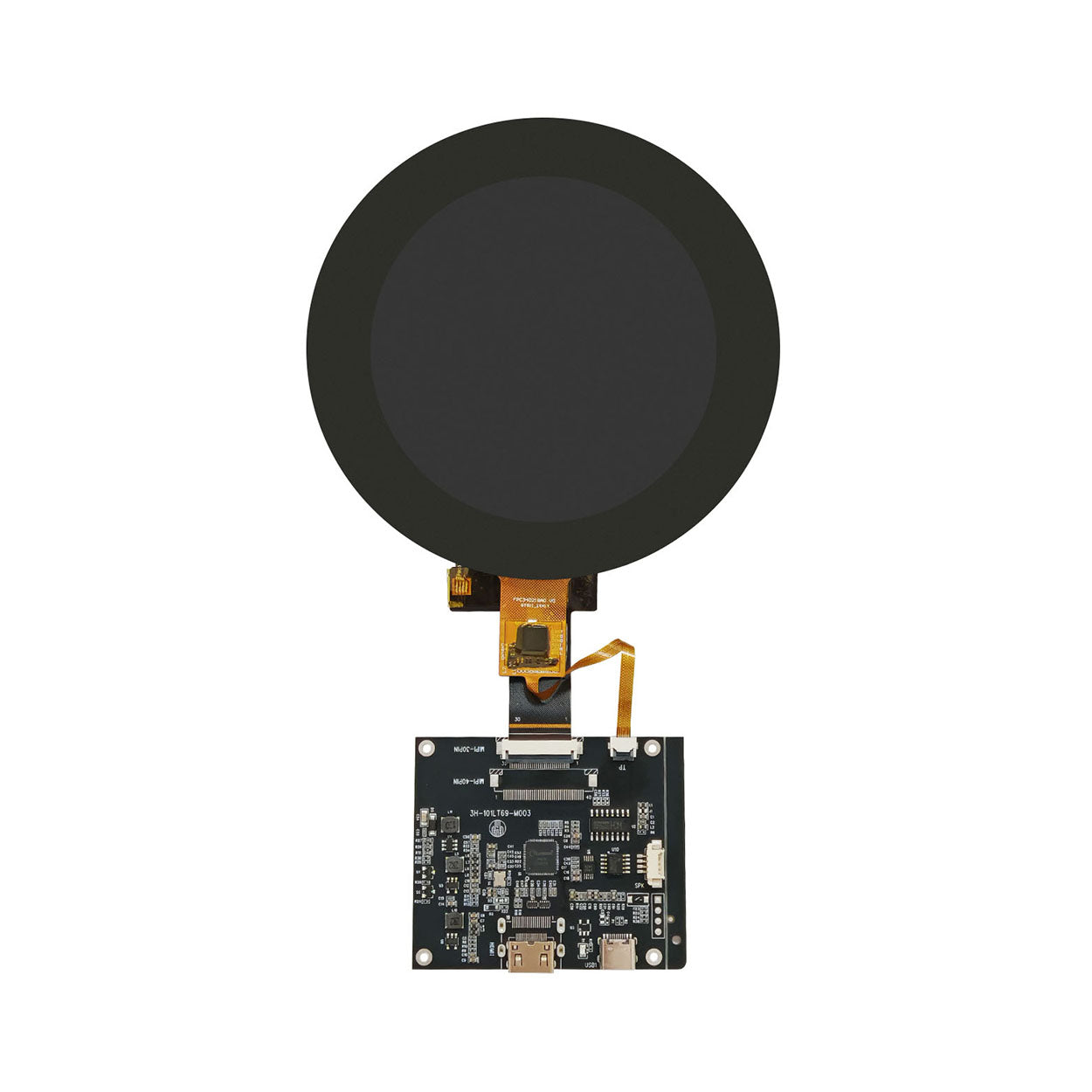

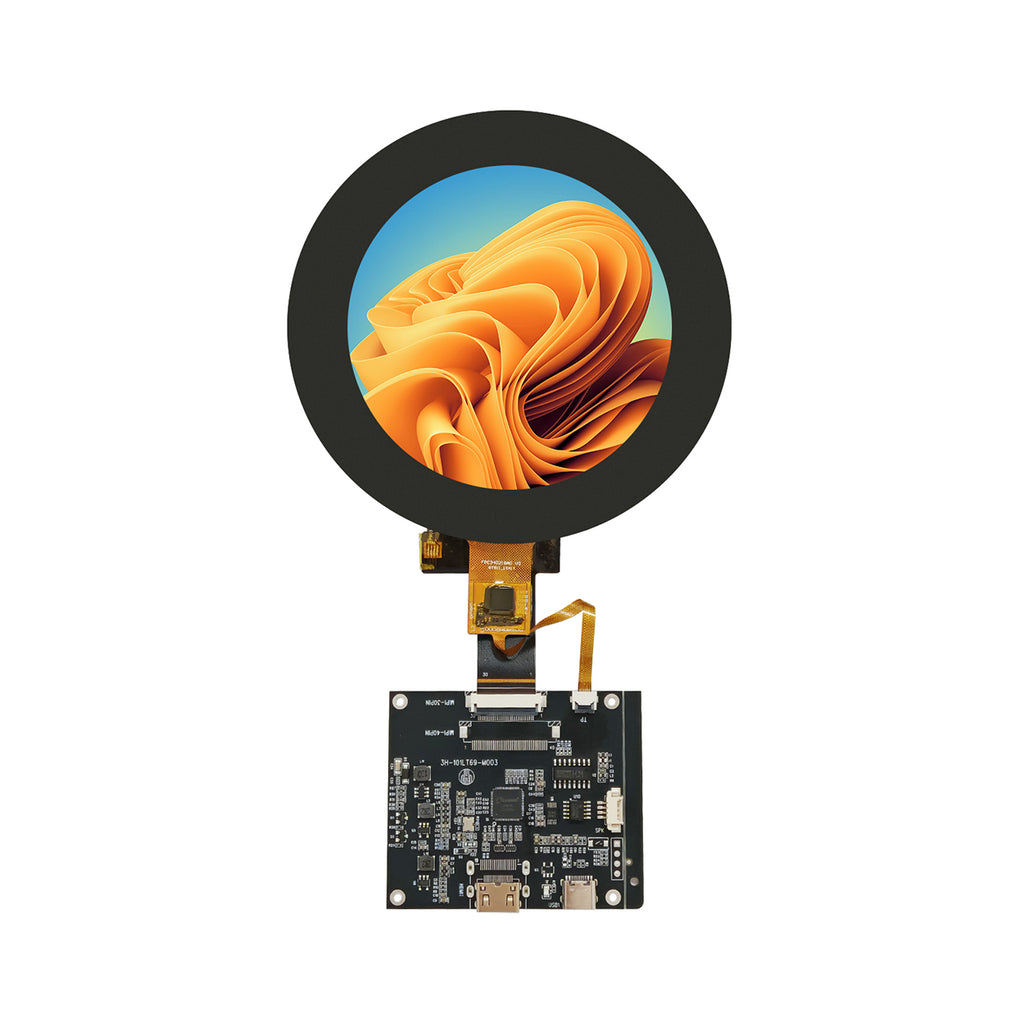

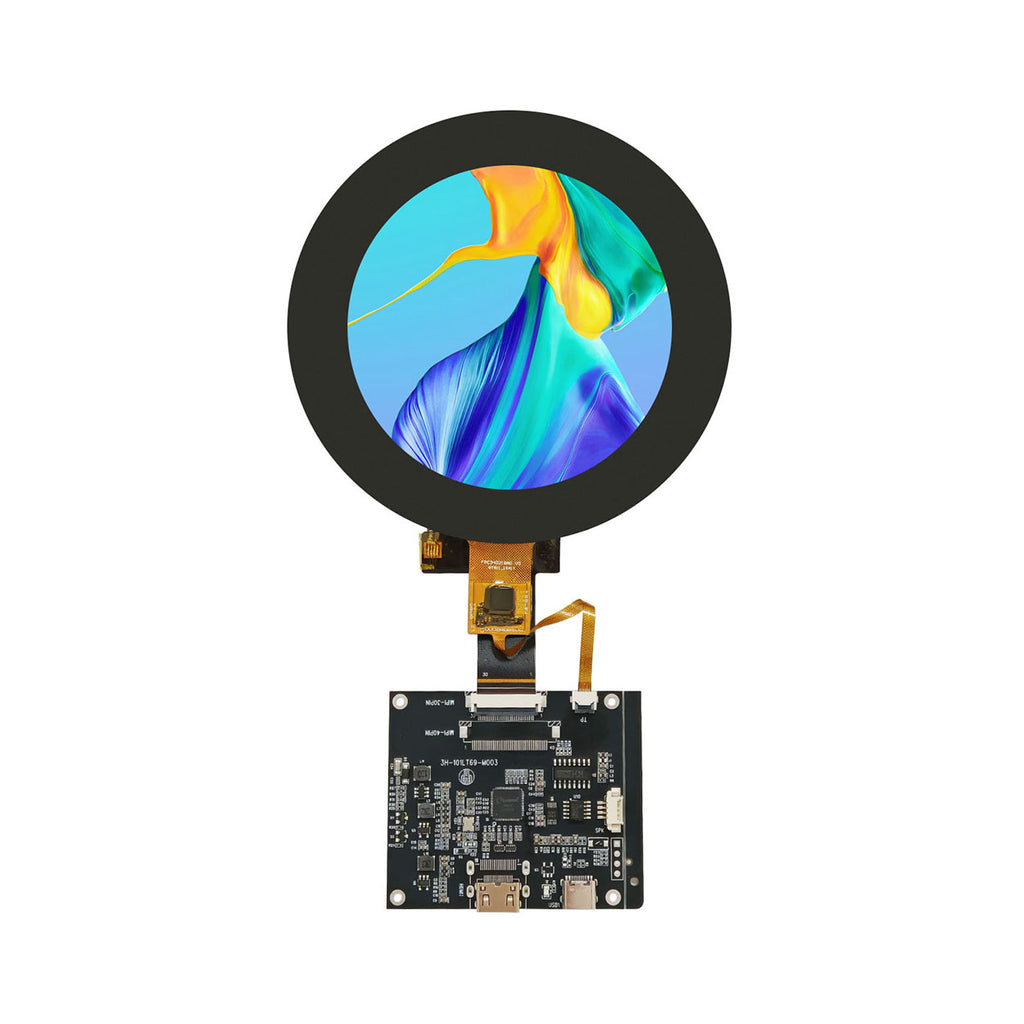

3.4 Inch 800×800 Round TFT LCD Display Touch Panel Screen Module MIPI
$64.59
Sale price
$64.59
Regular price

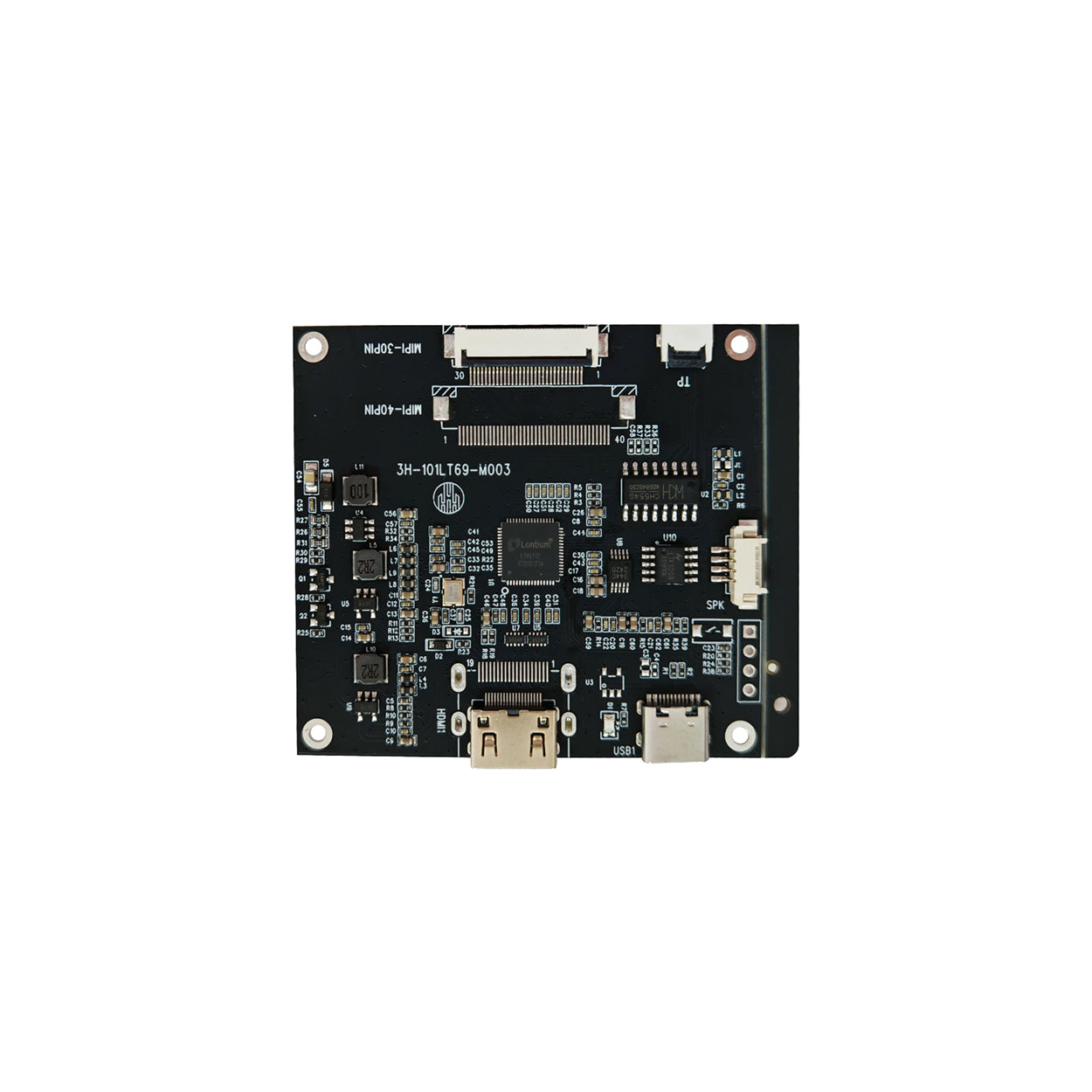

The 3.4inch TFT LCD supports MIPI interface, equipped with a capacitive touch panel and an HDMI driver board designed for this circular display module. It is a compact component that reduces your development time and board level complexity.
Perfect for modern embedded systems, smart home devices, and industrial HMI applications that require visual accuracy and unique design.
Mechanical Data
| Parameter | Specification |
| Display Size | 3.4inch TFT |
| Display Type | IPS Circular TFT LCD |
| Resolution | 800 × 800 |
| Display Color | 16.7M |
| Connect type | Connector |
| LCD Driver IC | JD9365 |
| LED Numbers | 10 LED |
| Interface | MIPI |
| LCM (W x H x T) (mm) | 118.84*118.84*5.63 |
| Active Area(mm) | 87.6*87.6 |
| Brightness | 400 cd/m2 |
| Viewing Direction | ALL |
| Pin | 30Pins |
| Touch Panel | Capacitive Touch |
| Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C |
Mechanical Draw
Module Interface

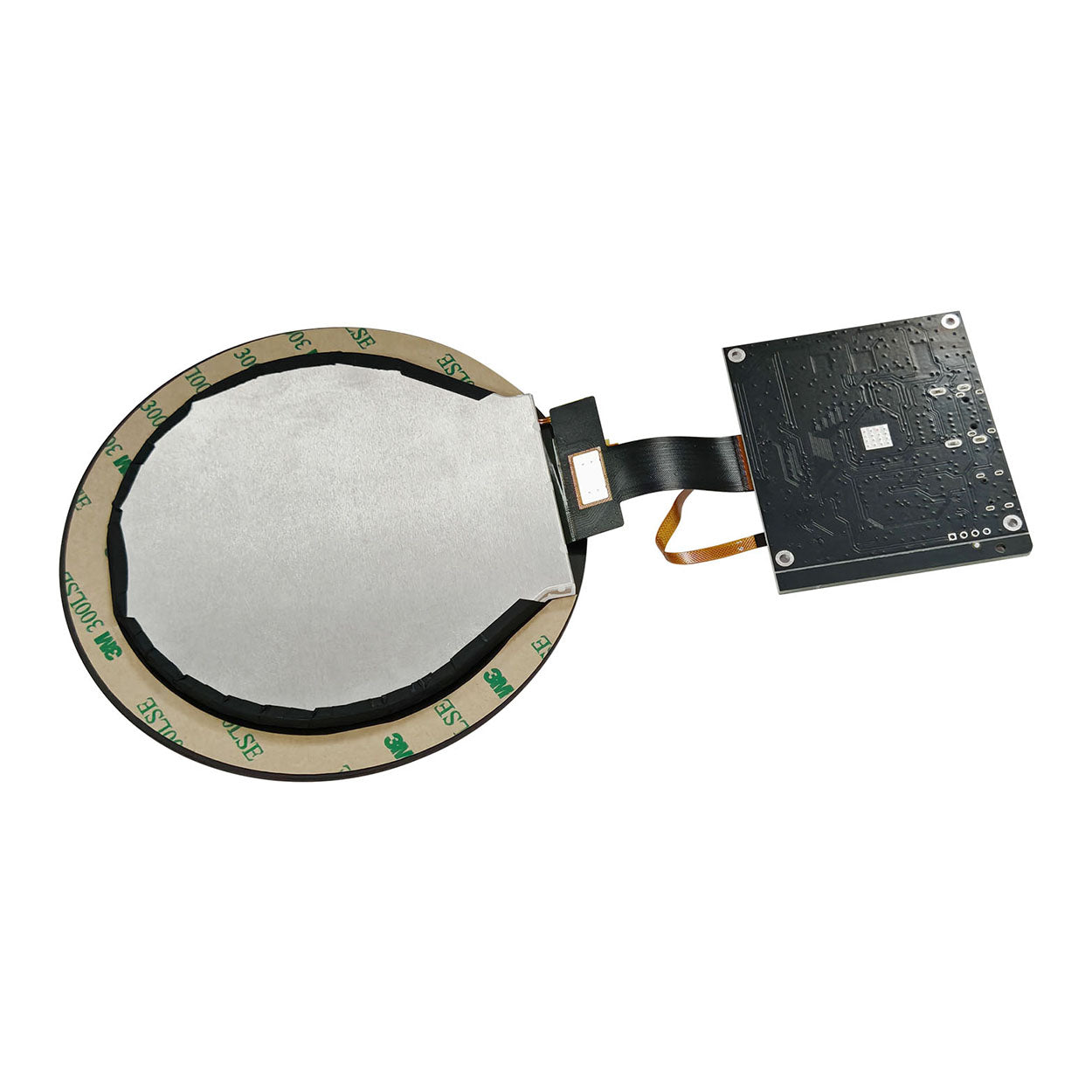

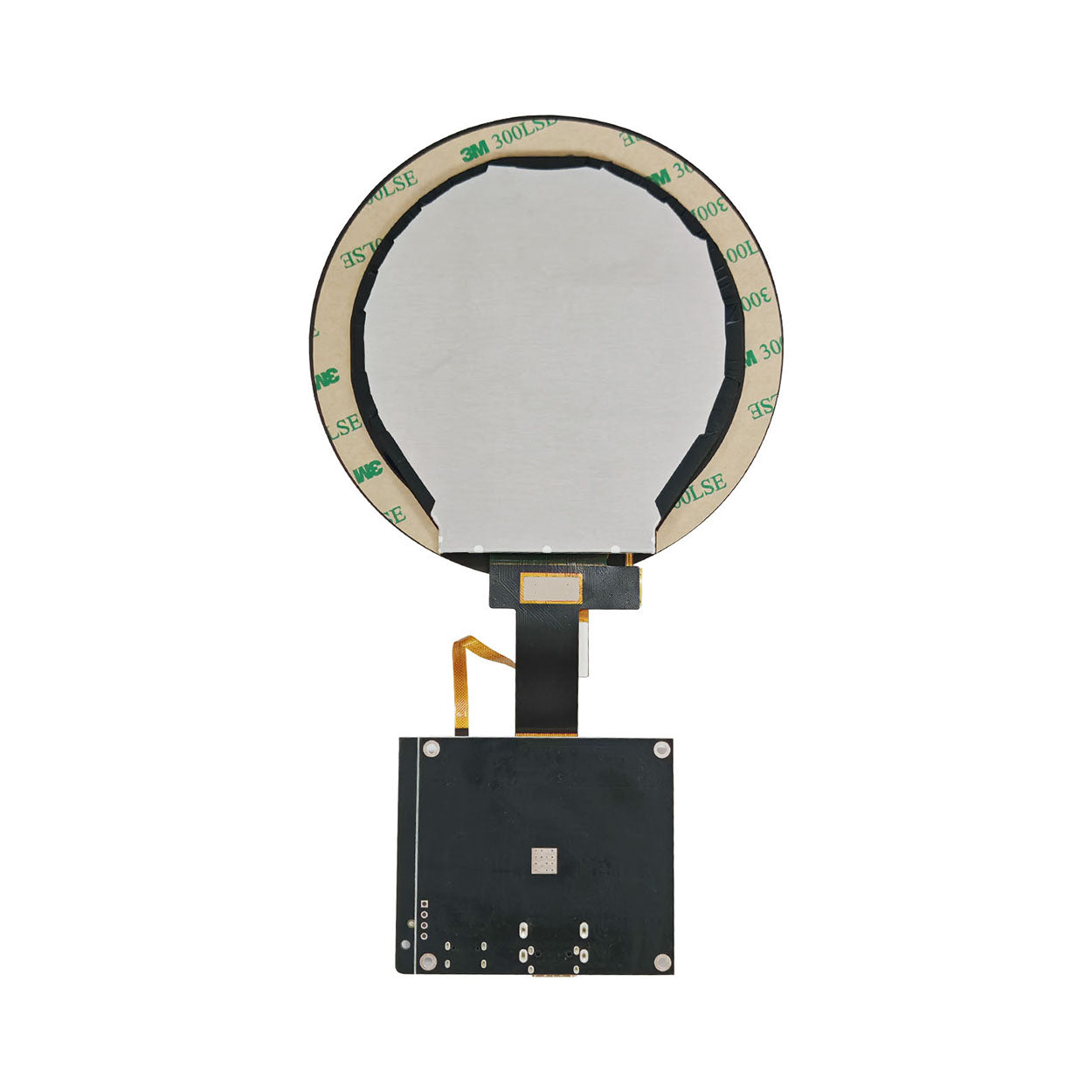

Product Image
