12.3" 1920×720 Bar TFT LCD Display | LVDS & HDMI
$117.59
Sale price
$117.59
Regular price
This 12.3 inch TFT Display is an LTPS type Thin Film Transistor Liquid crystal Display (TFT-LCD)
with AHVA (Advanced Hyper-Viewing Angle) technology. This model is composed of a
TFT-LCD, driver ICs, PCBA, in-cell touch, AlSi glass cover lens , and a backlight unit.
Features
- 12.3” display
- 1920 RGB x 720 resolution in RGB stripe dot arrangement
- High brightness
- Interfaces: 2 port LVDS
- AHVA–wide view technology
- RoHs compliance
- In-cell touch with TDDI
Mechanical Data
| Parameter | Specification |
| Display Size | 12.3 inch TFT |
| Resolution | 1920 (H) x 720 RGB (V) |
| Active Area | 292.032 (H)x109.512 (V) mm |
| Dot Pitch |
152.1x152.1 μm |
| Color Configuration |
R. G. B. Stripe |
| Color Depth | 16.7M Colors |
| Overall Dimension | 325.86 (H)x139.21 (V)x8.2 (T) mm |
| Display Mode | Normally Black |
| Brightness | 930 cd/m² |
| Interface | Dual-Port LVDS |
|
Contrast Ratio |
1200:1 |
| Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C |
Mechanical Draw

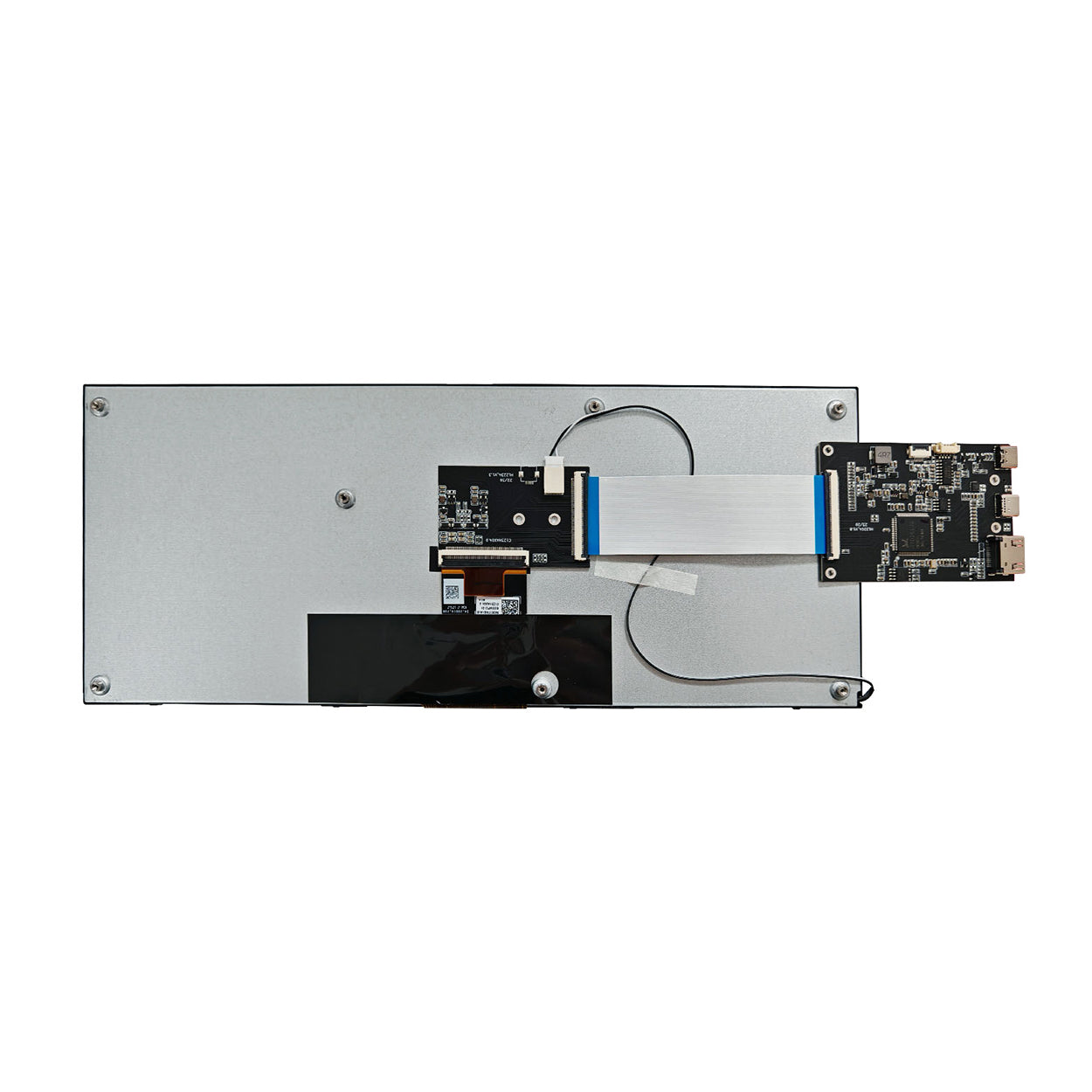

Module Interface

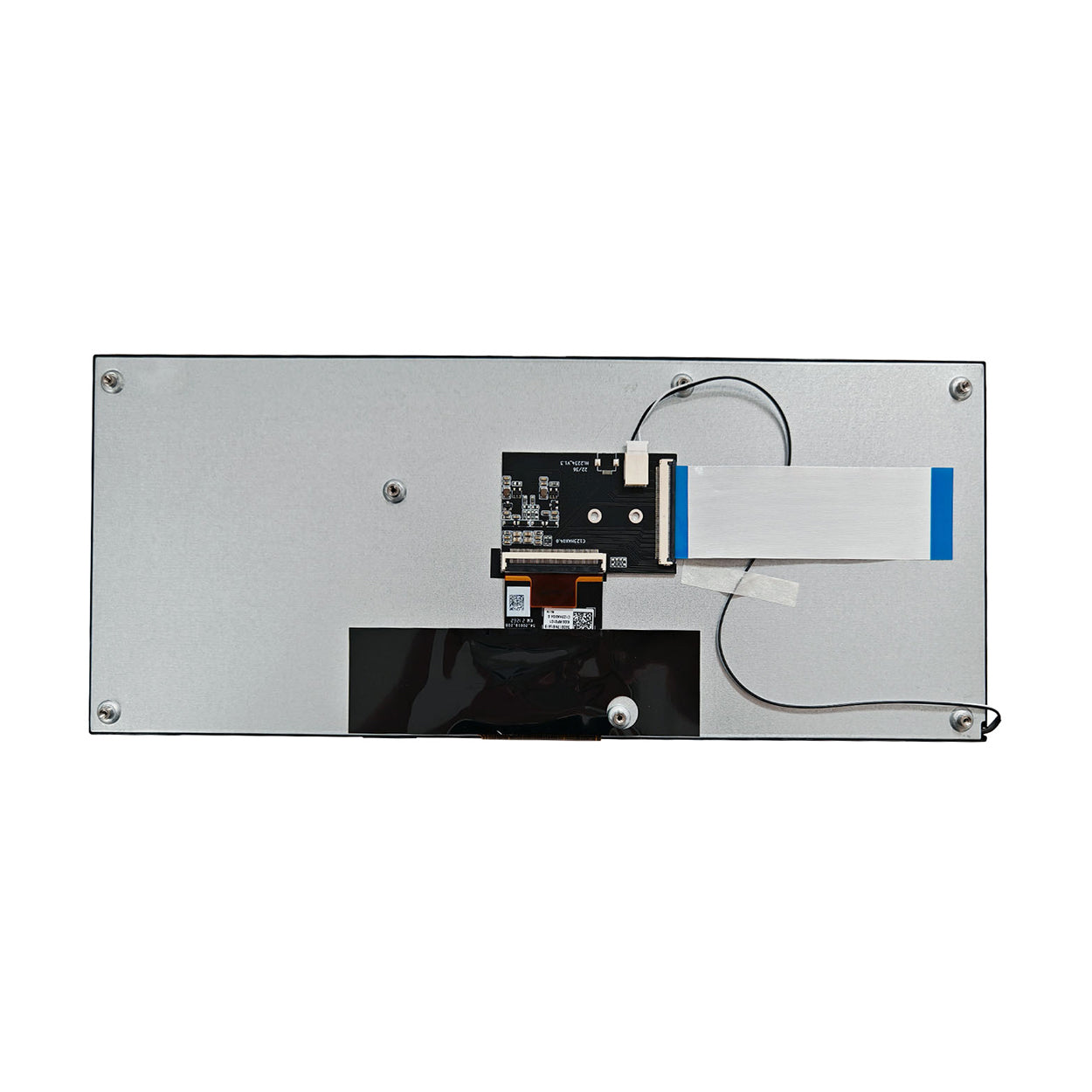

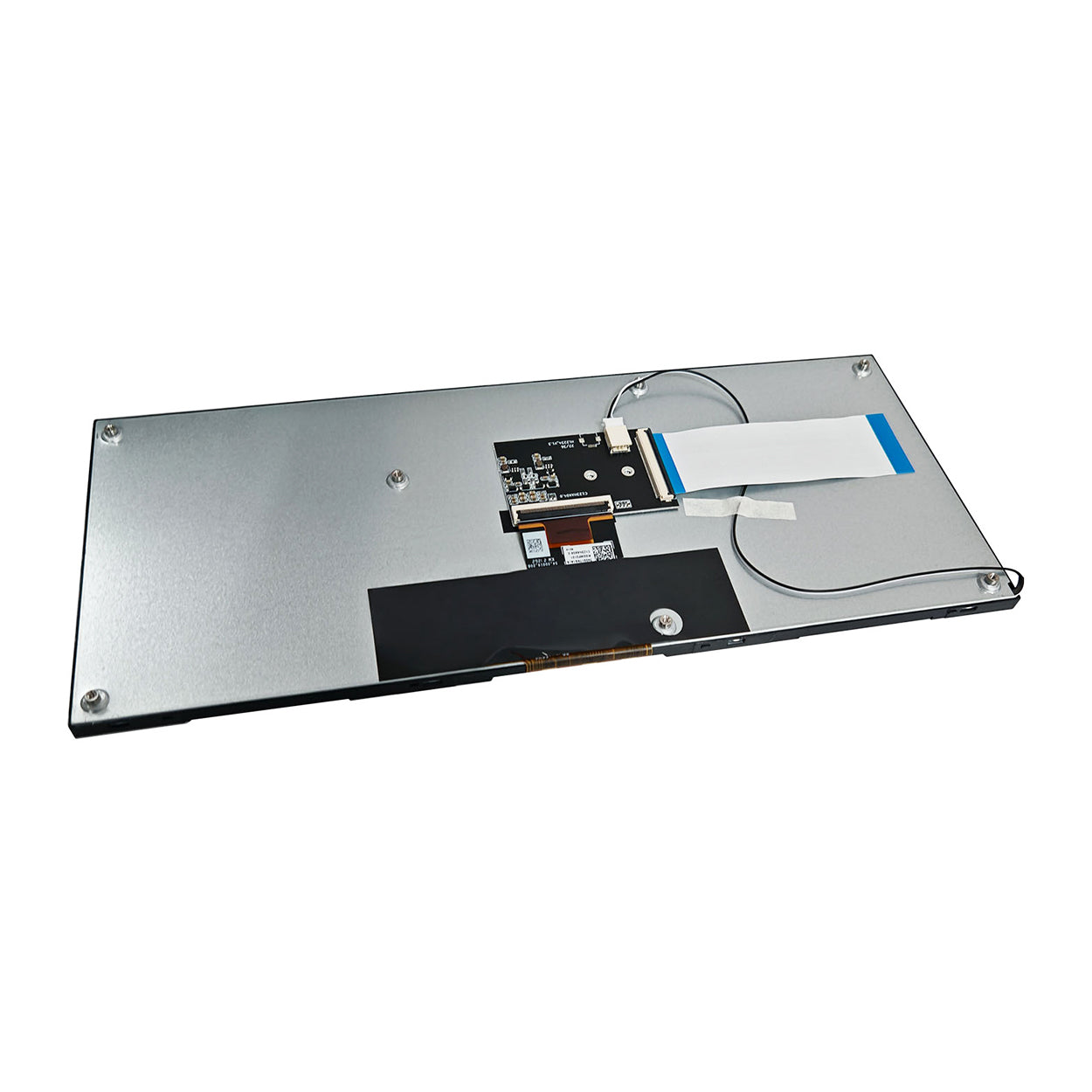

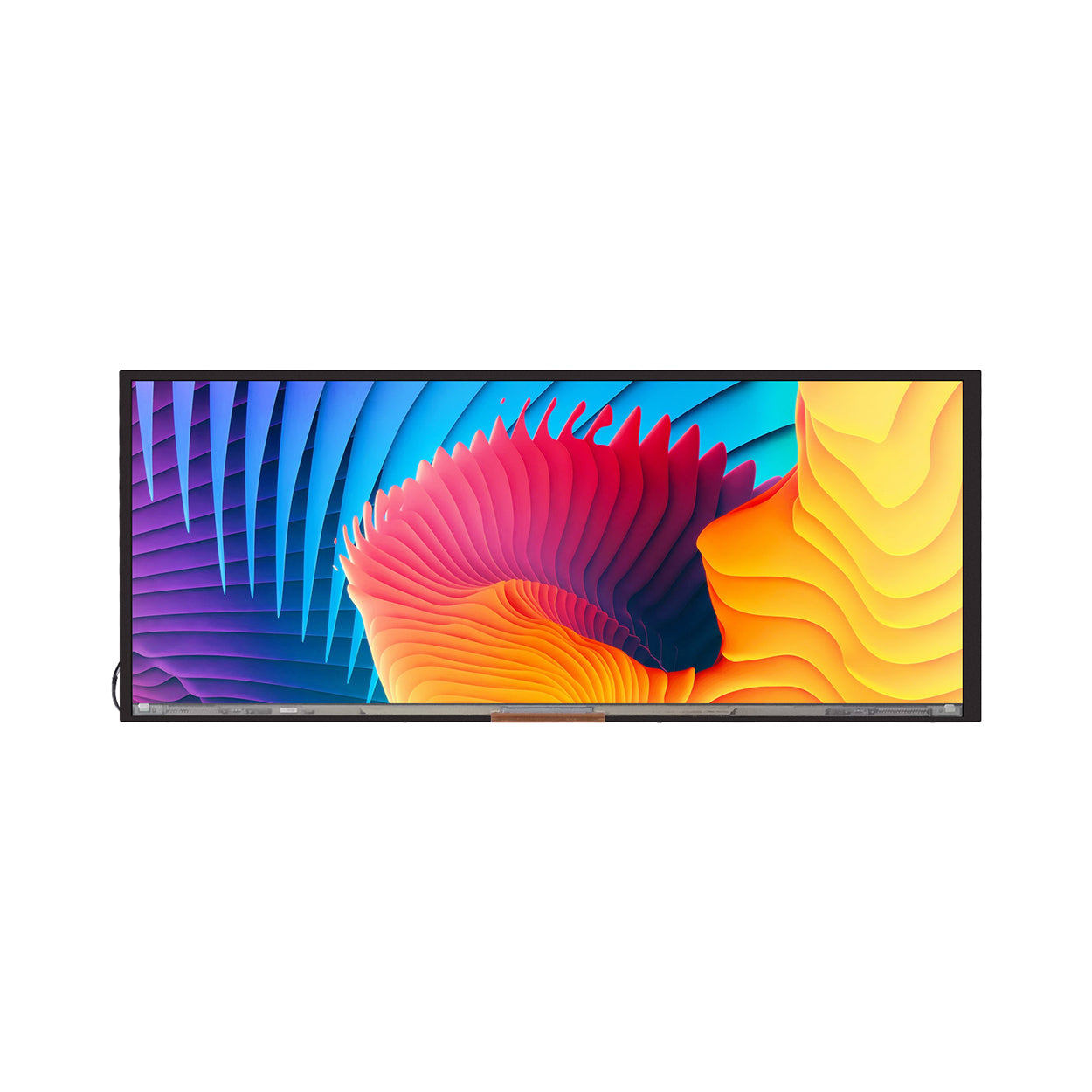

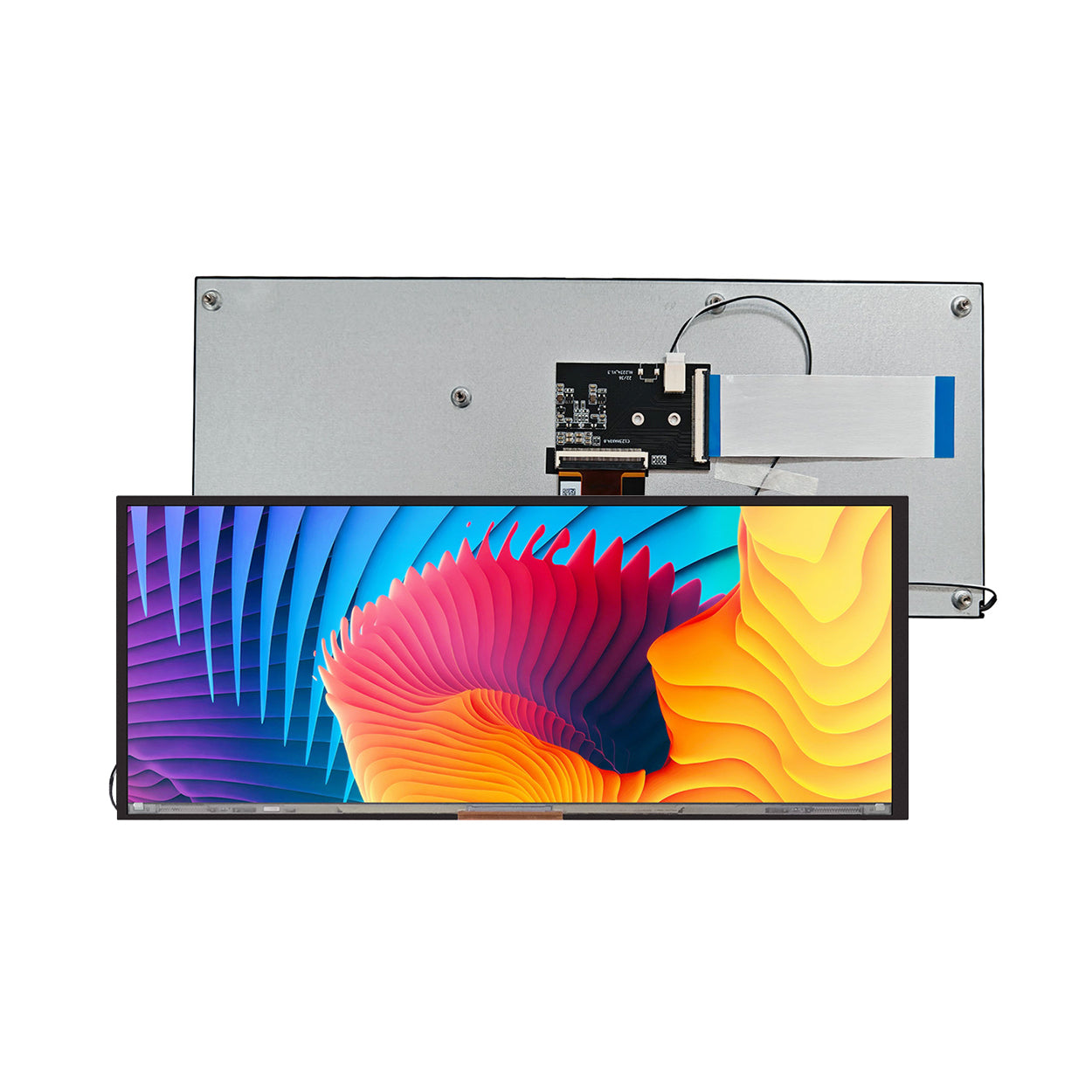

Product Image
