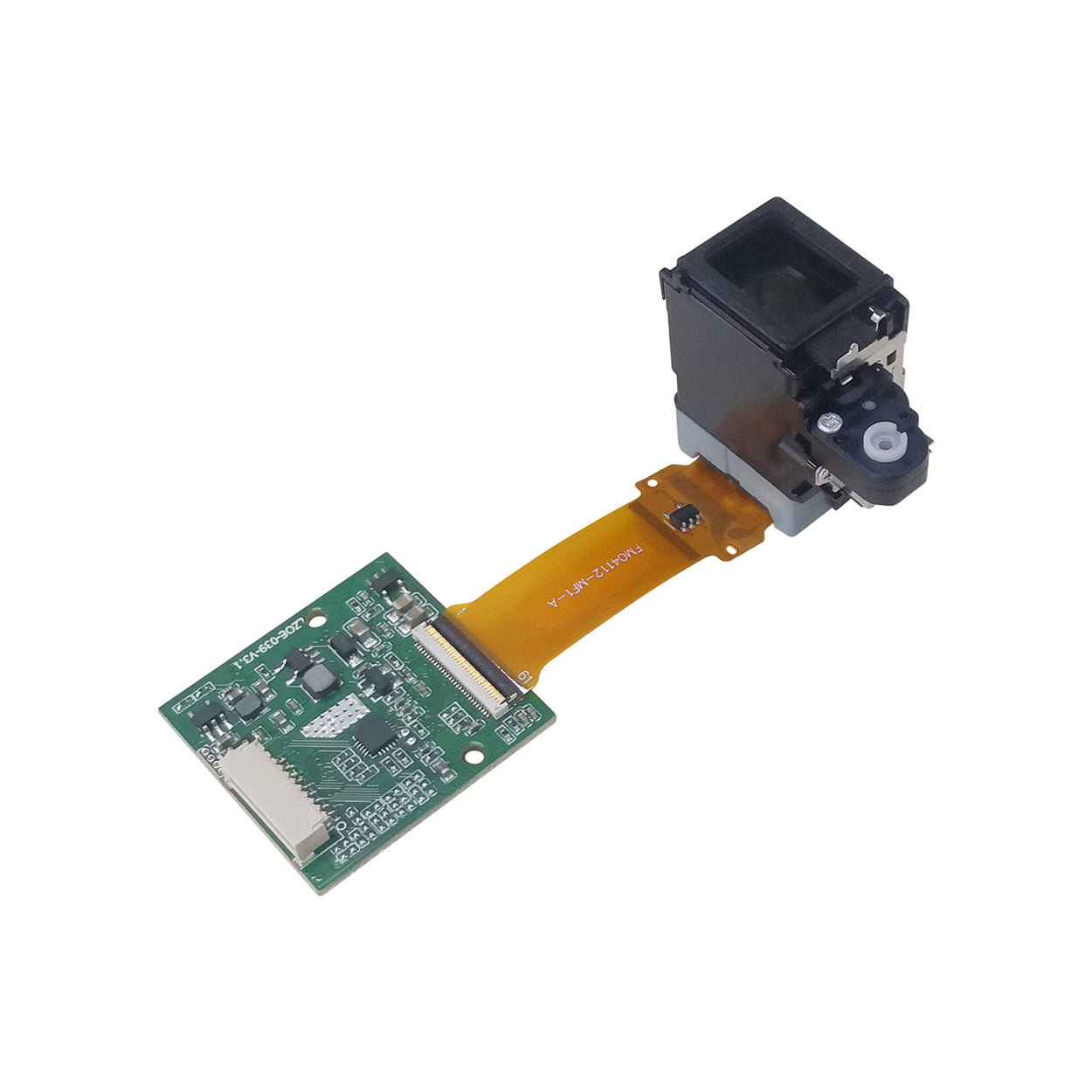

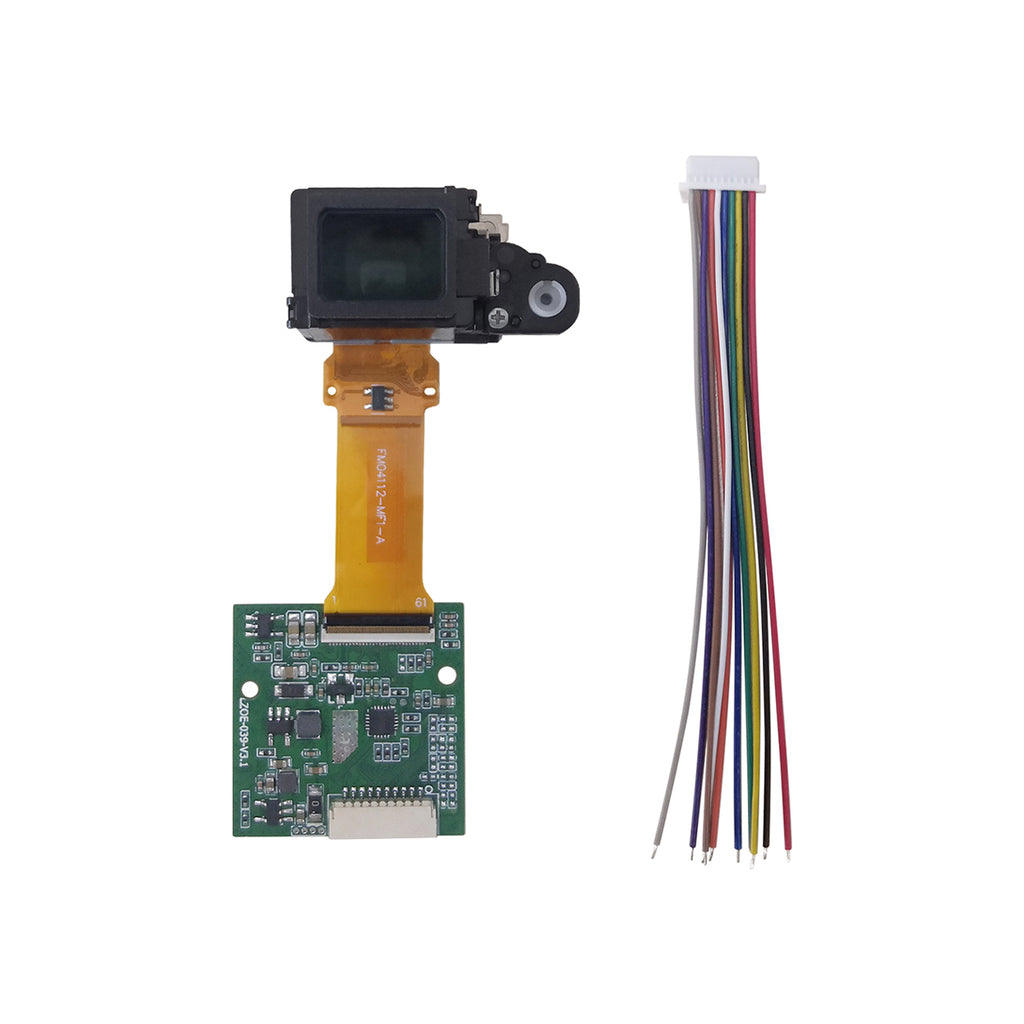

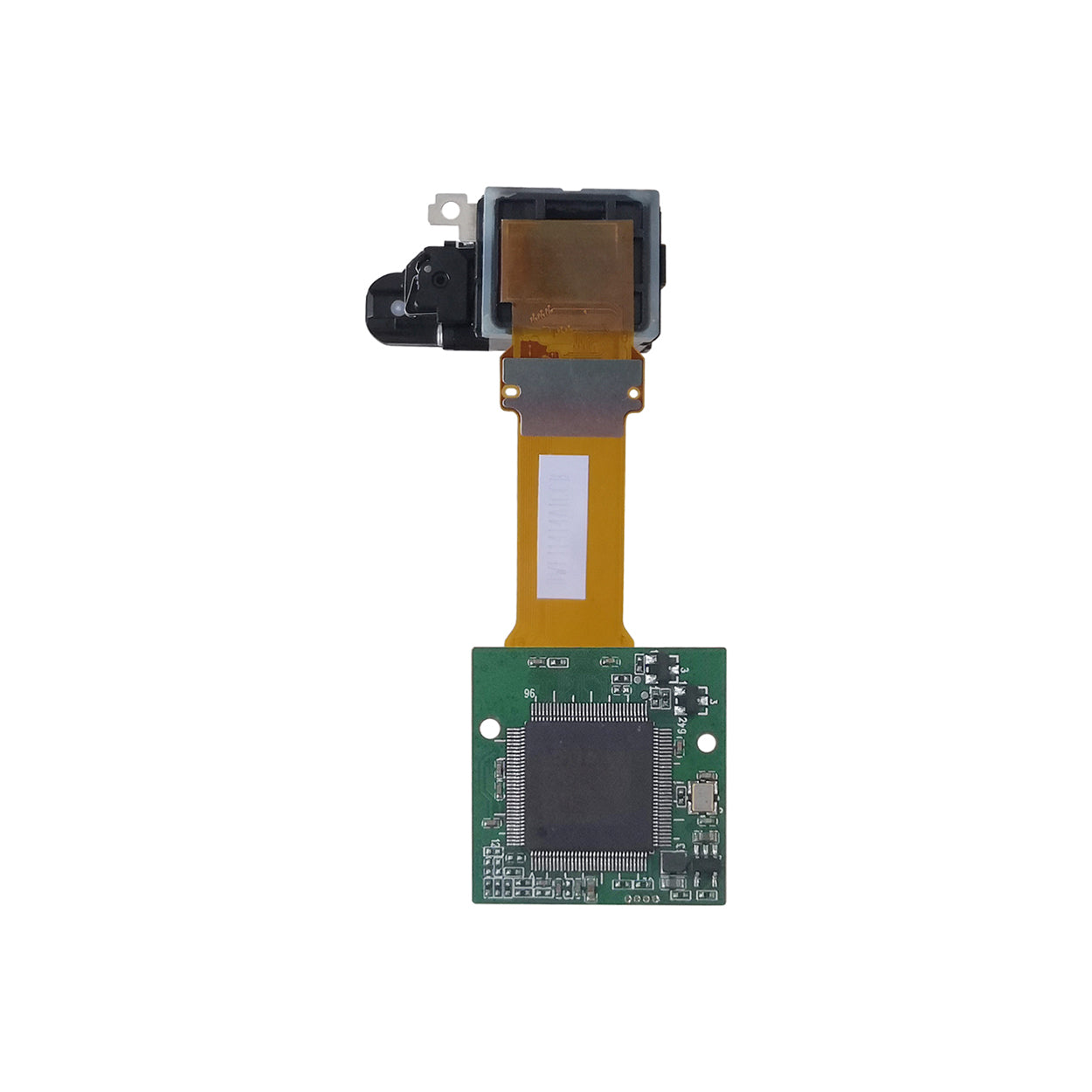

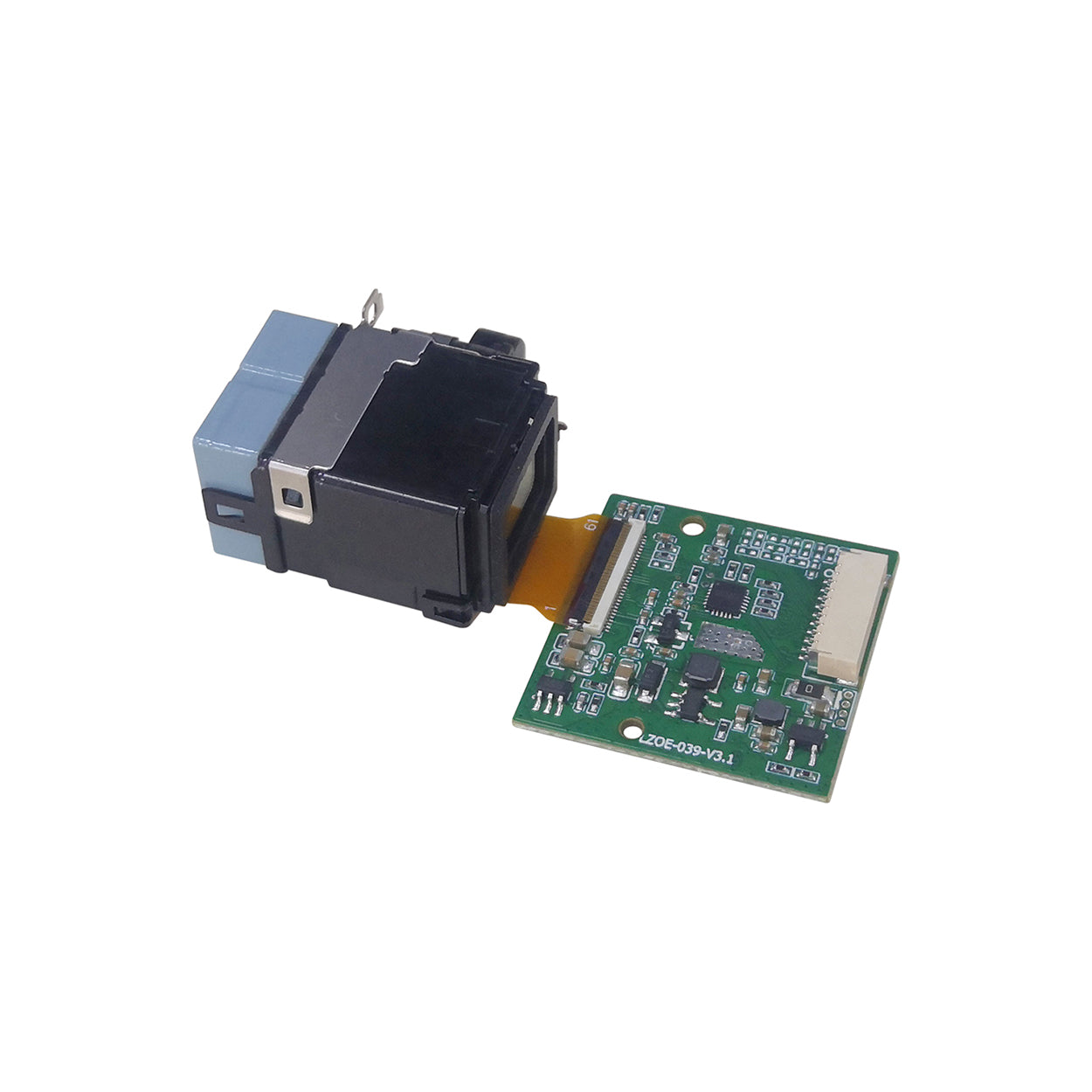

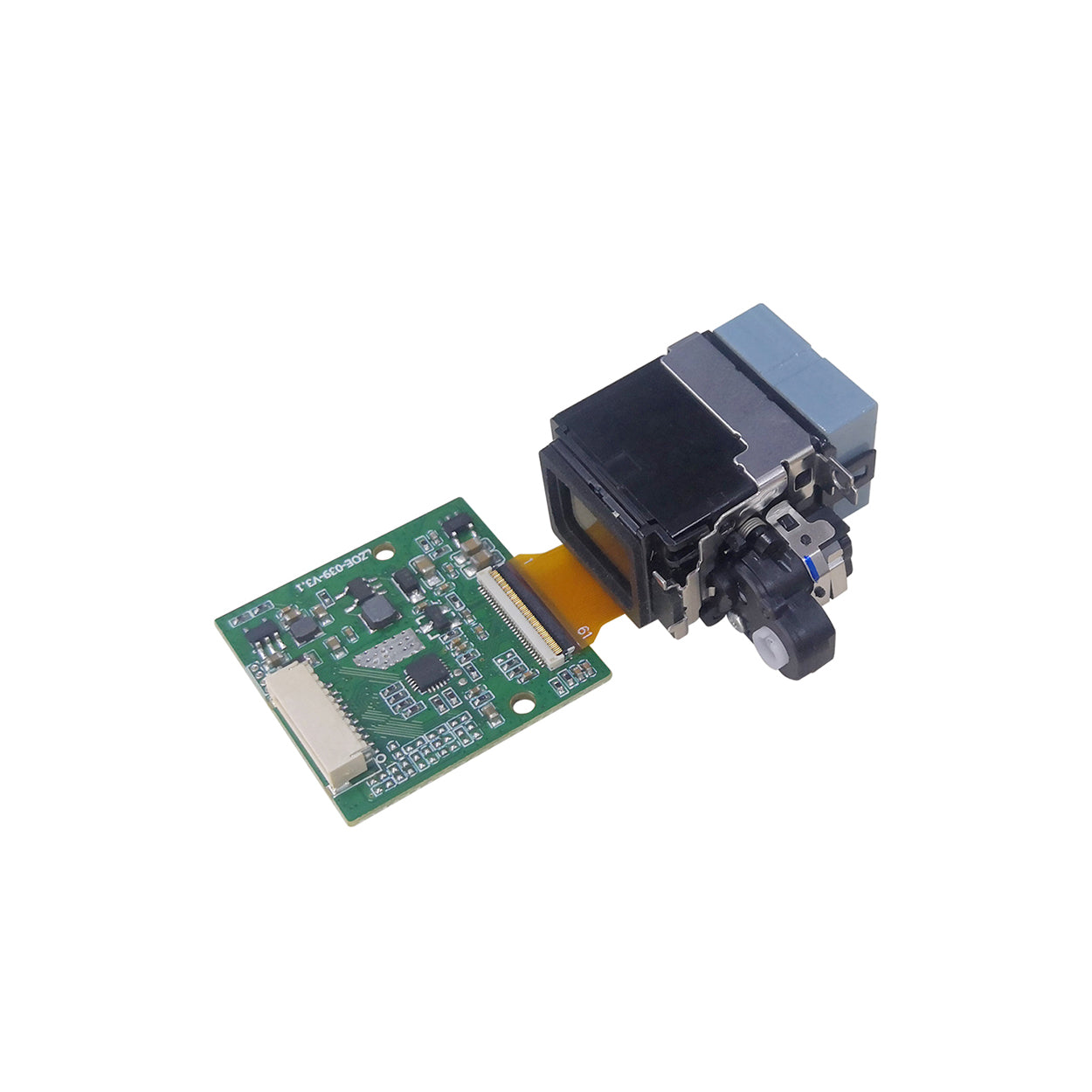

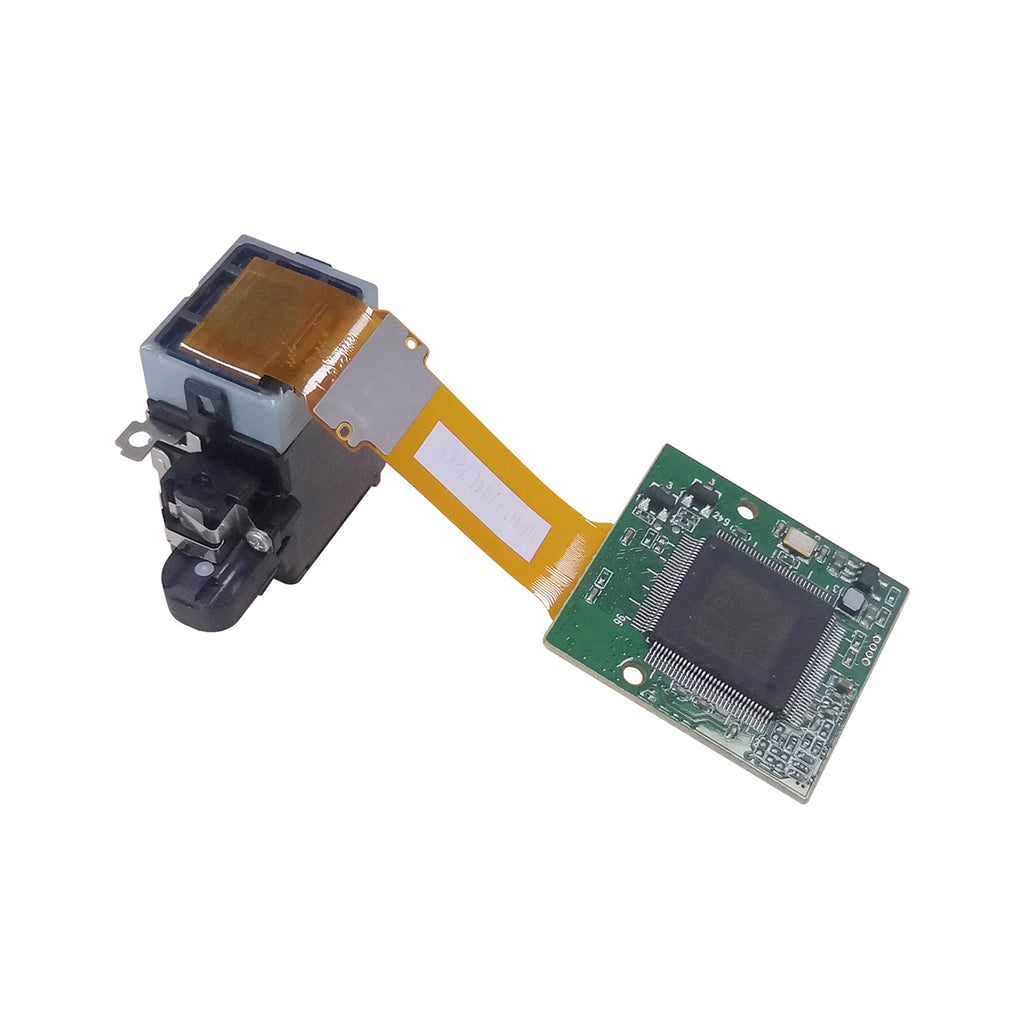

0.39 Inch OLED Micro Display 1024×768 With CVBS Board For Night Vision
  • 0.39 Inch OLED Micro Display 1024×768 With CVBS Board For Night Vision
  • 0.39 Inch OLED Micro Display 1024×768 With CVBS Board For Night Vision
  • 0.39 Inch OLED Micro Display 1024×768 With CVBS Board For Night Vision
  • 0.39 Inch OLED Micro Display 1024×768 With CVBS Board For Night Vision
  • 0.39 Inch OLED Micro Display 1024×768 With CVBS Board For Night Vision
  • 0.39 Inch OLED Micro Display 1024×768 With CVBS Board For Night Vision
0.39 Inch OLED Micro Display 1024×768 With CVBS Board For Night Vision

0.39 Inch OLED Micro Display 1024×768 With CVBS Board For Night Vision

$138.00
$138.00

Compact 0.39-inch OLED micro display delivering crisp 1024×768 resolution in a minimal footprint. Engineered for night vision applications with integrated CVBS board for seamless connectivity. Features high contrast and fast response times typical of OLED technology, ensuring clear visibility in low-light environments. Ideal for head-mounted devices, thermal imaging systems, and portable surveillance equipment. Durable construction supports demanding field operations while maintaining exceptional image quality and color accuracy.

Overview

The display is a 0.39-inch full color Si-OLED display module with 1024×768 dot matrix. The characteristics of this display module are high brightness, high contrast ratio, slim/ thin outline, wide viewing angle, wide temperature range, and low power consumption.

Features

Display Color: Full Color

Dot Matrix:1024×768

Digital Visual Interface

  • 24-bit RGB digital video
  • - 24-bit YCbCr digital video
  • - YCbCr digital video in 16-bit 4:2:2 format
  • Progressive scanning

Digital signal enhancement

  • Contrast adjustment

8-bit input, class of 256, according to the gray-scale 10 D/A conversion

Horizontal/vertical mirror image

The 2-wire serial interface

Mechanical Data

Parameter Specification
Diagonal A/A Size 0.39
Dot Matrix 1024×768
Dot Size 7.5×7.5
Dot Pitch 7.5
Active Area 7.92×6.00
Panel Size 11.72×8.41
Module Size (FPCA) 50.4×15.6×2.0



Mechanical Draw



Module Interface

PIN No. Symbol Type Description
1 VSS Power Supply System GND for internal digital system
2 VCOM Power Supply OLED device common cathode
3 AVDD Power Supply The 5V power supply is connected to the parallel capacitor 22uF and 0.1uF to the ground
4 VSS Power Supply System GND for internal digital system
5 VSS Power Supply System GND for internal digital system
6 VSS Power Supply System GND for internal digital system
7 VSS Power Supply System GND for internal digital system
8 VDD1V8 Power Supply Digital power supply 1.8V connected to 0.1uF capacitor to ground
9 PCLK Input Pixel clock
10 HS Input Horizontal synchronizing signal
11 VS Input Field sync signal
12 OLED RST Input Reset signal
13 R7 Input Red [7] digital video input
14 R6 Input Red [6] digital video input
15 R5 Input Red [5] digital video input
16 R4 Input Red [4] digital video input
17 R3 Input Red [3] digital video input
18 R2 Input Red [2] digital video input
19 R1 Input Red [1] digital video input
20 R0 Input Red [0] digital video input
21 G7 Input Green[7] digital video input
22 G6 Input Green[6] digital video input
23 G5 Input Green[5] digital video input
24 G4 Input Green[4] digital video input
25 G3 Input Green[3] digital video input
26 G2 Input Green[2] digital video input
27 G1 Input Green[1] digital video input
28 G0 Input Green[0] digital video input
29 VDD1V8 Power Supply Digital power supply 1.8V connected to 0.1uF capacitor to ground
30 VSS Power Supply System GND for internal digital system
31 B7 Input Blue[7] digital video input
32 B6 Input Blue[6] digital video input
33 B5 Input Blue[5] digital video input
34 B4 Input Blue[4] digital video input
35 B3 Input Blue[3] digital video input
36 B2 Input Blue[2] digital video input
37 B1 Input Blue[1] digital video input
38 B0 Input Blue[0] digital video input
39 ADDR0 Input Internal I²C Slave address control
40 NC NC No connect
41 REF IN Input Reference voltage control port, connected to 0.1uF capacitor to ground
42 NC NC No connect
43 I²C SCL Input I2C clock
44 NC NC No connect
45 I²C SDA Input / Output I2C data
46 DE Input Data effective signal
47 VSS Power Supply System GND for internal digital system
48 VSS Power Supply System GND for internal digital system
49 VDD1V8 Power Supply Digital power supply 1.8V connected to 0.1uF capacitor to ground
50 FSA R Output R channel brightness adjustment, connected with 12 K resistance to the ground
51 FSA G Output G channel brightness adjustment, connected with 12 K resistance to the ground
52 FSA B Output B channel brightness adjustment, connected with 12 K resistance to the ground
53 BW R Input R-channel DAC performance control port, connected to 0.1uF capacitor to 1.8V
54 BW G Input G-channel DAC performance control port, connected to 0.1uF capacitor to 1.8V
55 BW B Input B-channel DAC performance control port, connected to 0.1uF capacitor to 1.8V
56 VSS Power Supply System GND for internal digital system
57 VSS Power Supply System GND for internal digital system
58 VSS Power Supply System GND for internal digital system
59 AVDD Power Supply The 5V power supply is connected to the parallel capacitor 22uF and 0.1uF to the ground
60 VCOM Power Supply OLED device common cathode
61 VSS VSS System GND for internal digital system



Absolute Maximum Ratings

ITEM SYMBOL MIN MAX UNIT REMARK
1.8V Power VDD1V8 -0.3 2 V IC maximum rating
5V Power AVDD -0.3 6 V IC maximum rating
Negative power VCOM -5.5 0 V IC maximum rating
Operating temperature Top -40 65 ℃ -
Storage temperature Tpnl -55 80 ℃ -
